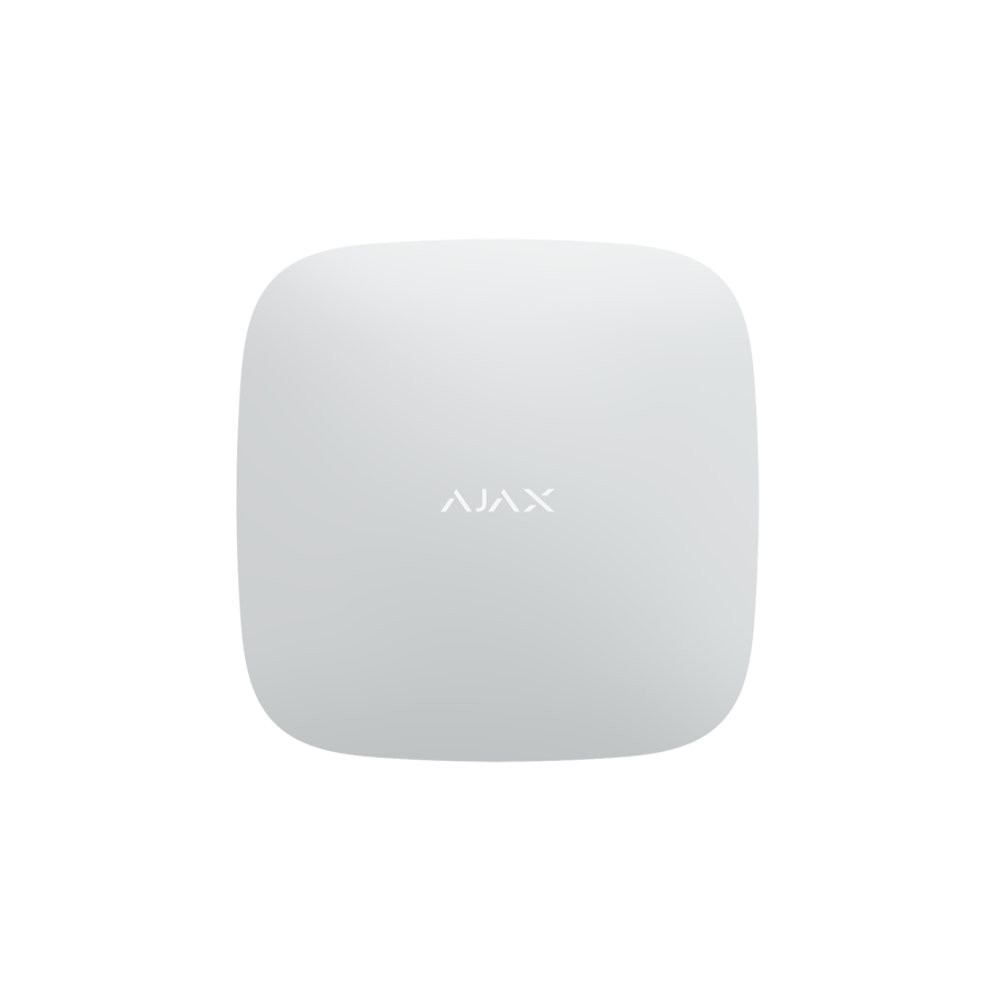

Ajax HUB 2 white control unit alarm

Ajax HUB 2 white burglar alarm control unit

Hub 2 monitors the operation of all Ajax devices to alert users of open doors, broken windows, fire threats and flooding. If burglars break into the house, Hub 2 transmits images from the MotionCam detectors and warns the security company (if set) of the danger. You don't have to live under the constant supervision of security cameras to know what's going on.

Alarm with photo verification in 9 seconds

Hub 2 works with MotionCam and MotionCam Outdoor motion detectors. When activated, they take a series of photos and allow you to evaluate a situation on the plant. Visual verification saves users from worries and security companies from unnecessary patrol mobilizations.

Always connected - via cable and cellular networks

Communication with the outside world is essential for the security system control panel. Its reliability and stability guarantee timely sending of the alarm to the security company and users.

Hub 2 can be connected simultaneously to three internet service providers: via Ethernet cable and 2 2G cellular networks.

Guaranteed delivery of alarms and photo-verifications

To ensure reliable communications, we equipped the Hub 2 with four antennas and support for two proprietary radio protocols: Jeweler and Wings. Jeweler takes care of the transmission of commands, events and alarms, while Wings takes care of the batch transmission of images. Ajax two-way radio communication uses framing to synchronize device communication, authentication to eliminate forgery, and encryption to protect against data leakage.

Flexibility at the center

The Hub 2 radio network covers several floors and separate buildings: thanks to a communication range of 2000 meters and the possibility of connecting up to 5 repeaters. To manage access to the security zones of the system, the hub allows the connection of 50 users and the creation of 9 security groups. Hub 2 is a perfect choice for home and business security.

Controlled via app

We didn't want buttons on the control panel case or outdated interfaces: apps are more comfortable and safer. They connect to a hub through a secure channel of the Ajax Cloud server located in different AWS data centers. In 2021, server availability was 99.995%.

The apps allow administrator users to manage system safety, change the settings of the hub and the devices connected to it, create scenarios and monitor events. From smartphone or PC. On site or remotely.

Automated Security

Hub 2 allows you to create 32 scenarios and minimize the impact of the human factor on safety. The hub can arm or disarm a plant or group on programming. Immediately activate a smoke machine if anyone enters the building. Cut off the power in the building and turn on the emergency lights in case of fire. Or turn off the water in case of flooding. Control lights, electric locks, roller shutters, and garage doors by arming/disarming, pressing a button or when it detects an alarm.

Resistant to sabotage attempts

Whatever happens to Hub 2, the security company and users will be notified. No one can disconnect the hub undetected, even when the system is disarmed. If an intruder tries to disassemble the device, this will trigger the tamper immediately. The Ajax Cloud server can send notifications about loss of connection with the hub in 60 seconds thanks to frequent polling. Even if the building is left without electricity, the hub protects the system for up to 16 hours thanks to the supplied backup battery.

Innovation-proof

Hub 2 Plus runs on OS Malevich, a real-time operating system developed by Ajax Systems. The OS Malevich operating system is extremely stable, immune to viruses and protected against cyber attacks. The modular architecture makes it easy to constantly update the OS Malevich operating system.

The hub receives new features several times a year with updates over the air. The update process is automatic and takes a few minutes when the security system is disarmed. The hardware configuration will allow Hub 2 to evolve and stay updated for years to come.

Install without problems

Hub 2 is ready to use right out of the box. All communication modules, power supply and backup battery are already installed. To start installing the system, connect the device to power and the Internet, insert SIM cards and scan the QR code through the app. Thanks to the mounting panelSmartBracket no need to disassemble the case when installing.

Connect security devices, cameras, users, test the radio signal, create groups and scenarios and even send a connection request to the CRA: all system settings are always available in the Ajax apps. Whether you are on site or not.

Simple security system update

To simplify the updating of the hubs in the plants, the possibility of automatic data transfer is foreseen. This import function allows you to migrate settings, connected devices, groups, scenarios and users from an old hub to Hub 2. In less than 15 minutes.

Details:

Brand: Ajax
Model: Hub 2
Colour: white
Connection type: wireless, proprietary wireless communication technology for the transmission of alarms and events
Device connections: up to up to 100 sensors, up to 10 sirens, 5 repeaters
Camera/DVR connections: up to 25 Dahua, Hikvision, Safire, EZVIZ and Uniview IP and DVRs, RTSP protocol compatible
Number of users: up to 50, with independent management of permissions for each
Automations: up to 32 scenarios, responses to alarms, programmed actions, responses to changes in security mode, responses to changes in CO2, temperature, humidity
Settable areas: up to 9
Settable rooms: up to 50
Working frequencies: 866.0 – 866.5 MHz, 868.0 – 868.6 MHz, 868.7 – 869.2 MHz, 905.0 – 926.5 MHz, 915.85 – 926.5 MHz, 921.0 – 922.0 MHz
Maximum Effective Radiated Power (ERP): up to 20mW (Automatic power control to reduce power consumption and noise interference)
Radio signal modulation: GFSK
Maximum distance: 1.7Km ( Between the hub and connected devices in the open field. Maximum range depends on connected devices and may vary)
Ping interval: 12 to 300 sec
Encryption: All saved and transmitted data is protected by block encryption with dynamic key
Skipping of frequency: to prevent radio interference and radio signal interception
Installation: internal use
Power supply: 110–240 Vac
Internal dialers: 1 x RJ45 ethernet, 2 x 2G GSM900 micro SIM /DCS1800 (B3/B8)
Switching internal telephone dialers: automatic. One of the two or both can also be used simultaneously
Type of notifications: push, SMS, call
Types of notified events: alarms, malfunctions, events, change of security mode
Photo verification: photo by alarm, photo by scenario, photo on request
Frame delivery time: up to 9 seconds
Frame resolutions: 640x480 pixels
Number of frames: from 1 to 5
Supported protocols : SIA (DC-09), SurGard (Contact ID), ADEMCO 685, Other proprietary protocols
Backup battery: Li-ion 3 Аh, for 15 hours of autonomy without power supply
Dimensions: 163 × 163 × 36 mm
Weight: 362gr
