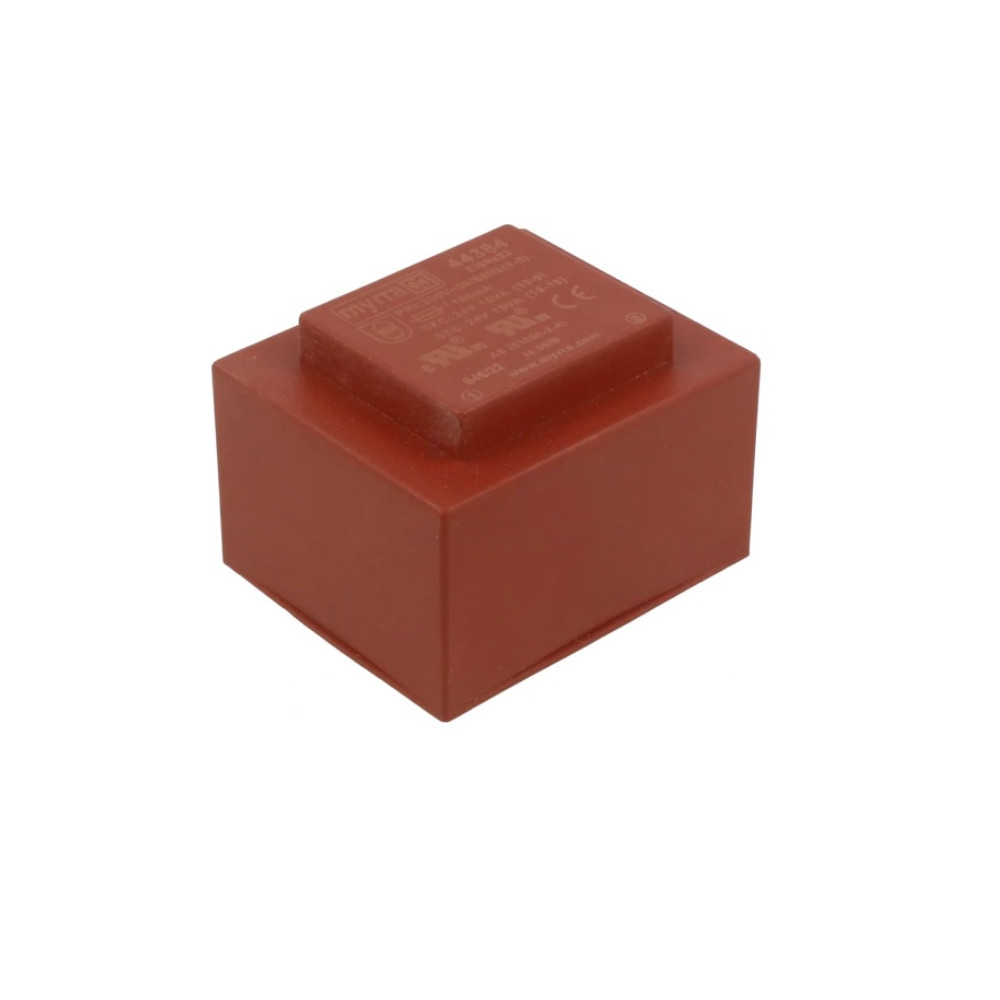

Encapsulated transformer 24 + 24V 30Va for PCB
Encapsulated transformer 24 + 24V 30Va for PCB
24+24V 30Va encapsulated transformer for PCB
Designed with the goal of providing exceptional performance and high quality construction, these transformers are the ideal choice for a wide range of electronic applications. Whether you are working on industrial, commercial or other projects, these board transformers offer you a reliable and compact solution.
Designed with the goal of providing exceptional performance and high quality construction, these transformers are the ideal choice for a wide range of electronic applications. Whether you are working on industrial, commercial or other projects, Myrra 44384 transformers offer you a reliable and compact solution.
Designed and built according to international standards, these transformers are tested to ensure consistent performance and long life. You can count on the quality of the materials and manufacturing precision, minimizing the risk of malfunctions and breakdowns.
Details:
Type: encapsulated transformer
Input: 230 Vac
Output: 24Vac + 24Vac
Output current: 0.62A + 0.62A
Insulation electrical resistance: 4kV/60s
Enclosure class: IP00
Primary input pins: 1-8
Secondary output pins: 9-10 / 15-16
Thermal class: Ta50B
Weight: 780gr

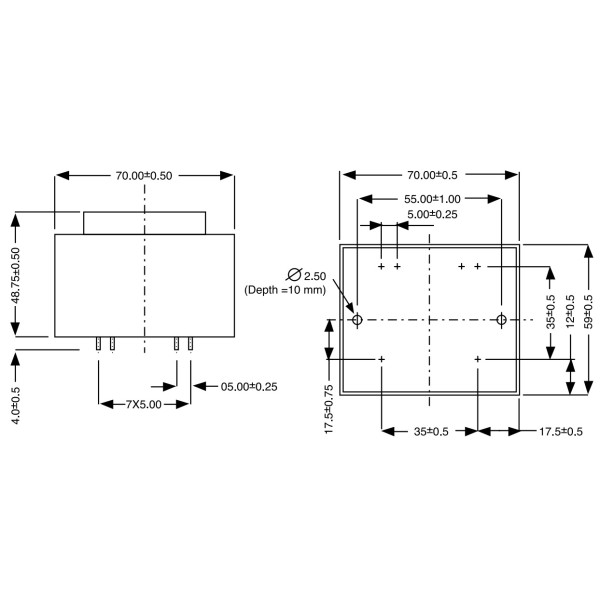

Dimensions: 70x59x48.75mm
