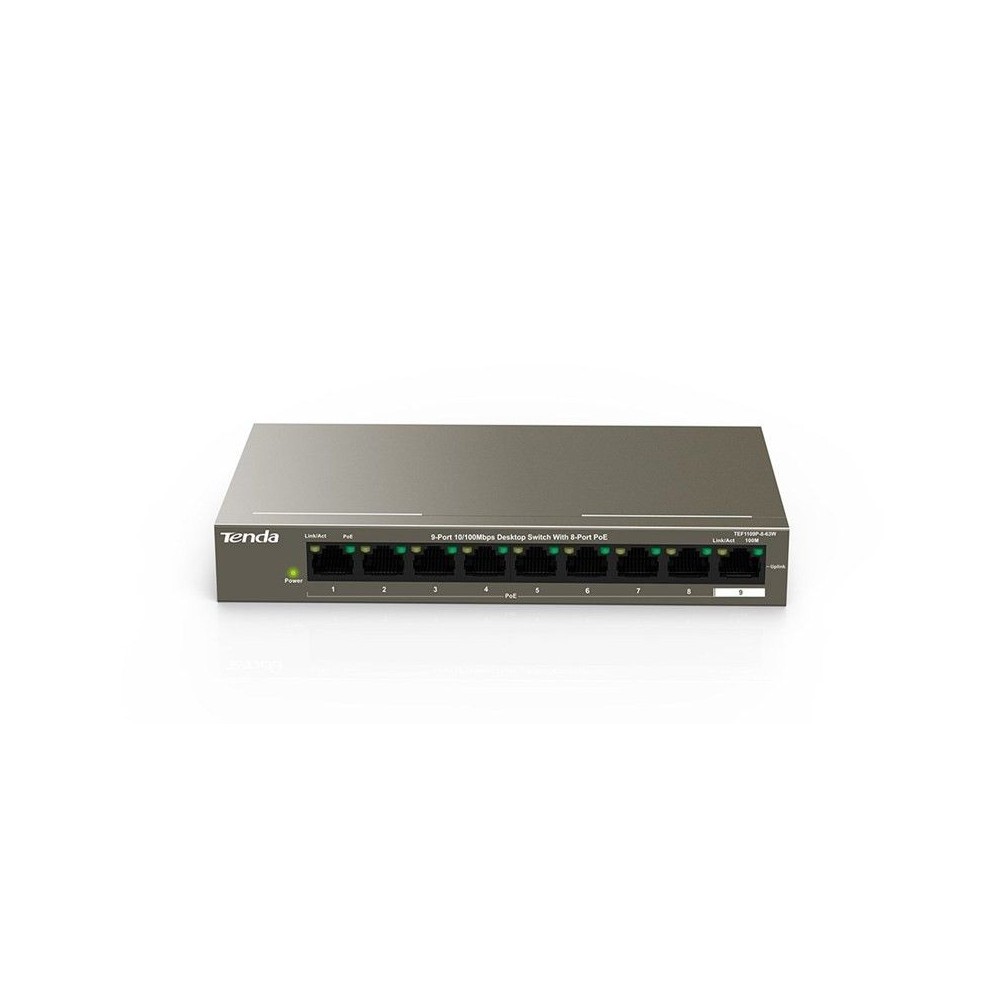

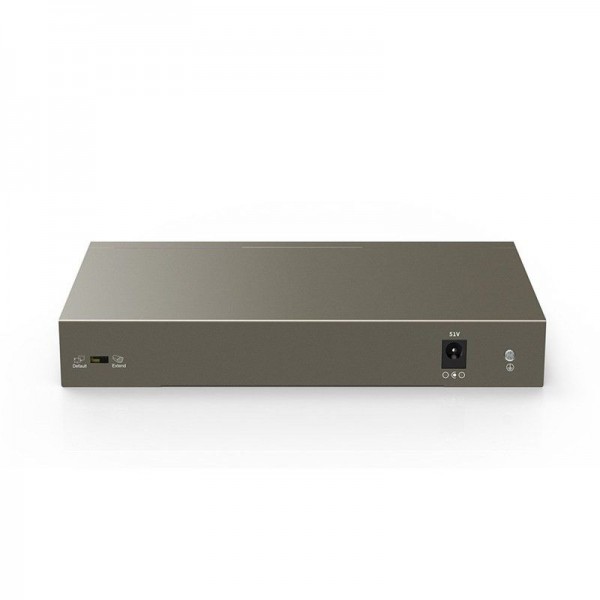

8 Ports LAN Switch 10 100 Mbps POE TEF1109P-8-63W

8 Ports LAN Switch 10 100 Mbps POE TEF1109P-8-63W

LAN network switch with 1 input and 8 outputs + uplink port with POE power supply to power your devices

Power supply for safe and efficient data transmission

6KV lightning protection door | Long distance transmission. Maximum PoE Output Power PoE 58W | PoE power up to 30W for each PoE port

Up to 250m distance for data transmission

Due to complex monitoring procedures, when wiring and configuring the network, you are likely to encounter the transmission distance problem due to network difficulties; the distance of each terminal from the camera to the monitoring center is different, in some cases only a few meters, in others hundreds of meters, but sometimes it is also kilometers.
The Tenda TEF11 PoE switch for monitoring has a 'unique patented network extension technology, uses the existing twisted pair cable, can support data transmission up to 250 meters, and exceed the limit of existing twisted cable pairs of hundreds of meters in the transmission capacity.

PoE switch offering 6KV lightning protection is an ideal device for monitoring tasks

In a real video surveillance system, cameras are often installed outdoors and in an elevated position, which increases the possibility that the camera and PoE switch will suffer damage or lightning strikes. In these cases, the equipment could be damaged and stop the activity. TEF11 Tenda Switches are specifically designed for lightning protection: a 6-port KVA socket and power mode ensure a double level of protection, effectively reduce the risks for cables, which is equivalent to giving the entire monitoring system security of the network with much higher standards than what is required according to national parameters. When a thunderstorm occurs, the system guarantees a stable and reliable monitoring service, protects data transmission and makes sure that it runs smoothly.

Incredible PoE power source

Ports 1-8 support IEEE 802.3at system and IEEE 802.3af PoE standard. They guarantee a maximum output power of 30W for a single port and 58W for the entire device.

Details:

Brand: Tenda
Model: TEF1109P-8-63W
PoE ports: 8 + 1 uplink
Power: 30W per port, total 58W
Standard and protocol: IEEE 802.3 、 IEEE 802.3u 、 IEEE 802.3x 、 IEEE802.3ab 、 IEEE 802.3af 、 IEEE 802.3at
Switching capacity: 5.6 Gbit / s
Dimensions: 177.5x104x26mm
Power supply: 51Vdc 2.1A ( power supply included)
Certifications: 3C 、 FCC 、 CE 、 RHOS
