Relay 48V 8A 2 exchanges RT424048 SCHRACK

48Vdc double exchange relay

€ 8.50
Tax included
Out of Stock
RT424048

Relay 48V 8A 2 exchanges RT424048 SCHRACK

Relay 48V 8A 2 changeovers RT424048 Schrack

Schrack RT2 series miniature industrial relays for general purpose applications. All relays are designed for mounting on printed circuit boards or on push-in sockets.

Details:

Model: RT424048
Brand: Schrack
Type of contact: 2
Nominal coil voltage: 48Vdc
Max AC capacity: 8A / 250Vac per contact
Max capacity DC: 8A / 30Vdc per contact

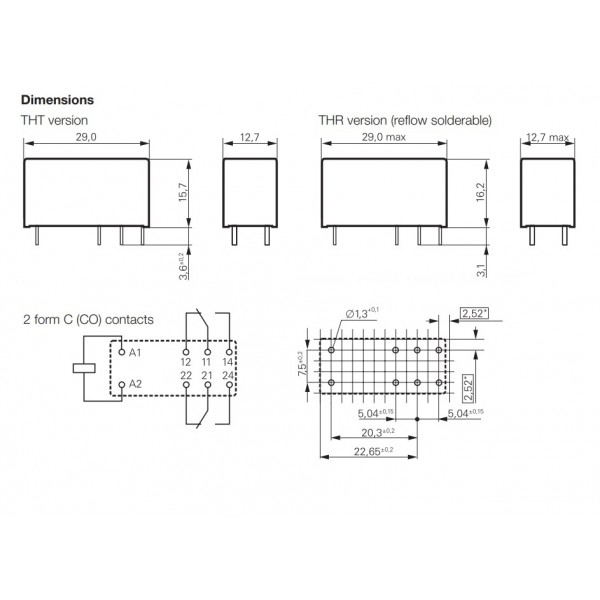

Dimensions: 29x12.7x15.7mm
Coil resistance: 5.52 KOhm
Minimum coil voltage: 33.6Vdc
Sealing class: IP40

RT424048
2000000159812

Data sheet

Tensione
48v
Contacts configuration
DPDT
