12V 16A relay 1 SCHRACK exchange

12V 16A relay 1 SCHRACK exchange

€ 5.30
Tax included
In stock
Ceb
4/07706

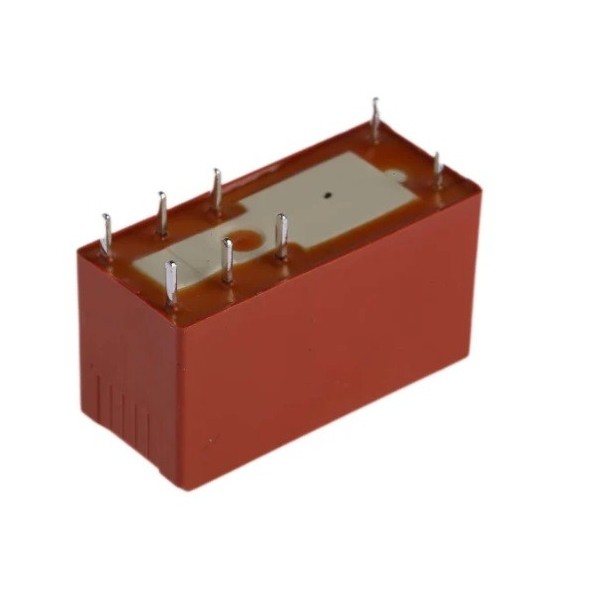

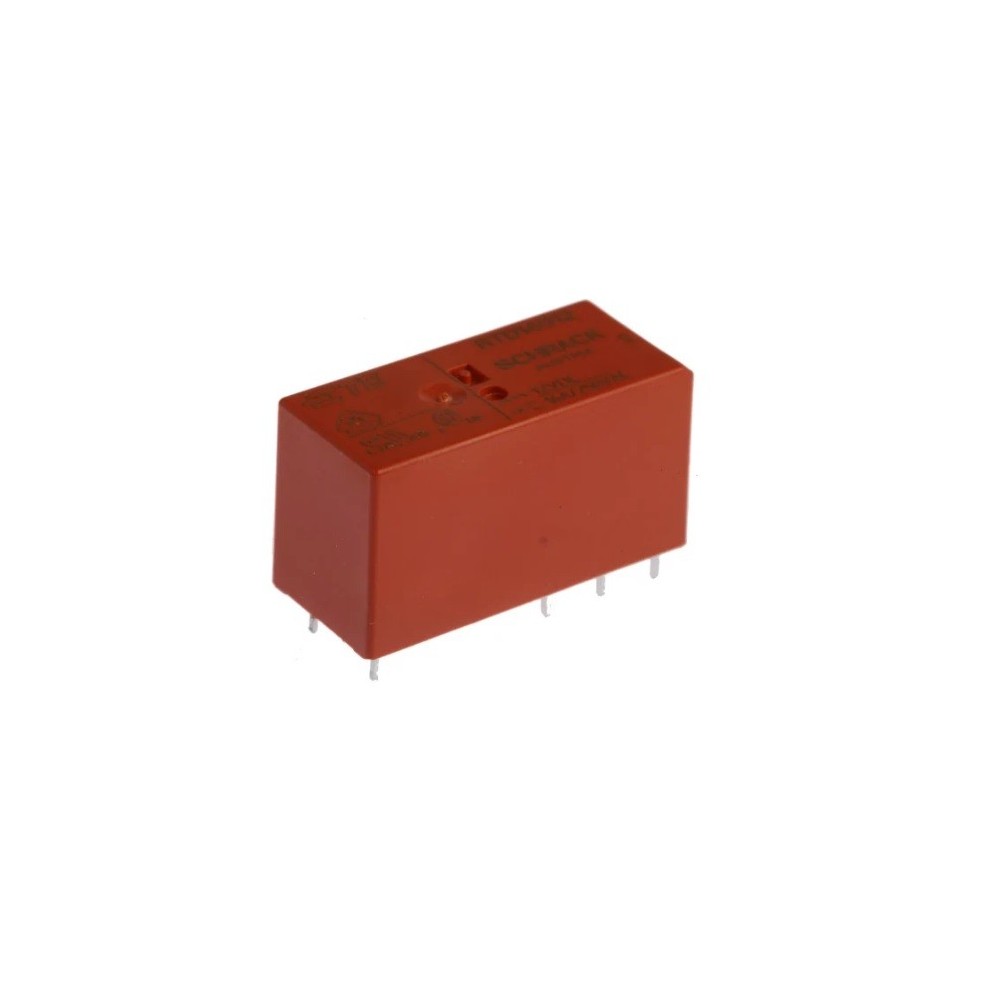

12V 16A relay 1 SCHRACK exchange

12V 16A relay 1 SCHRACK exchange

Power relay for printed circuit board of the RT SCHRACK series. Applications such as interfaces, automation, domestic use, security lighting, heating systems.

Details:

Mounting: THT
Model: RTD14012
AC load capacity: 16A 250Vac
DC load capacity: 16A 24Vdc
Contact configuration: SPDT
Switching voltage: max. 300Vdc, max. 400Vac
Coil resistance: 360 ohm
Minimum coil voltage: 8.4Vdc

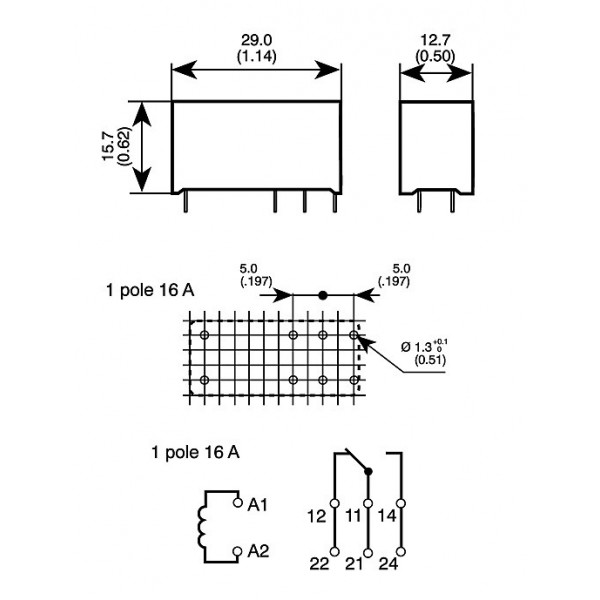

Dimensions: 29x15.7x12.7mm
Power consumption: 400mW
Sealing class: IP67
Mechanical stability: 30000000 cycles
Weight: 14gr

Ceb
4/07706
1000000001631
14 Items

Data sheet

Tensione
12v
Contacts configuration
SPDT
