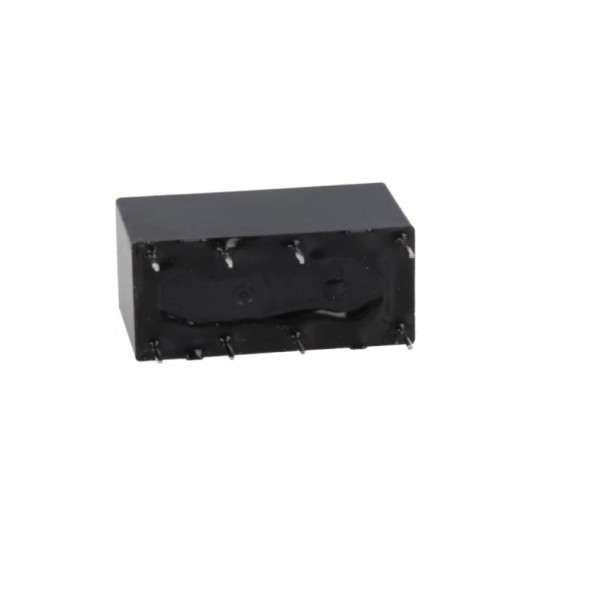

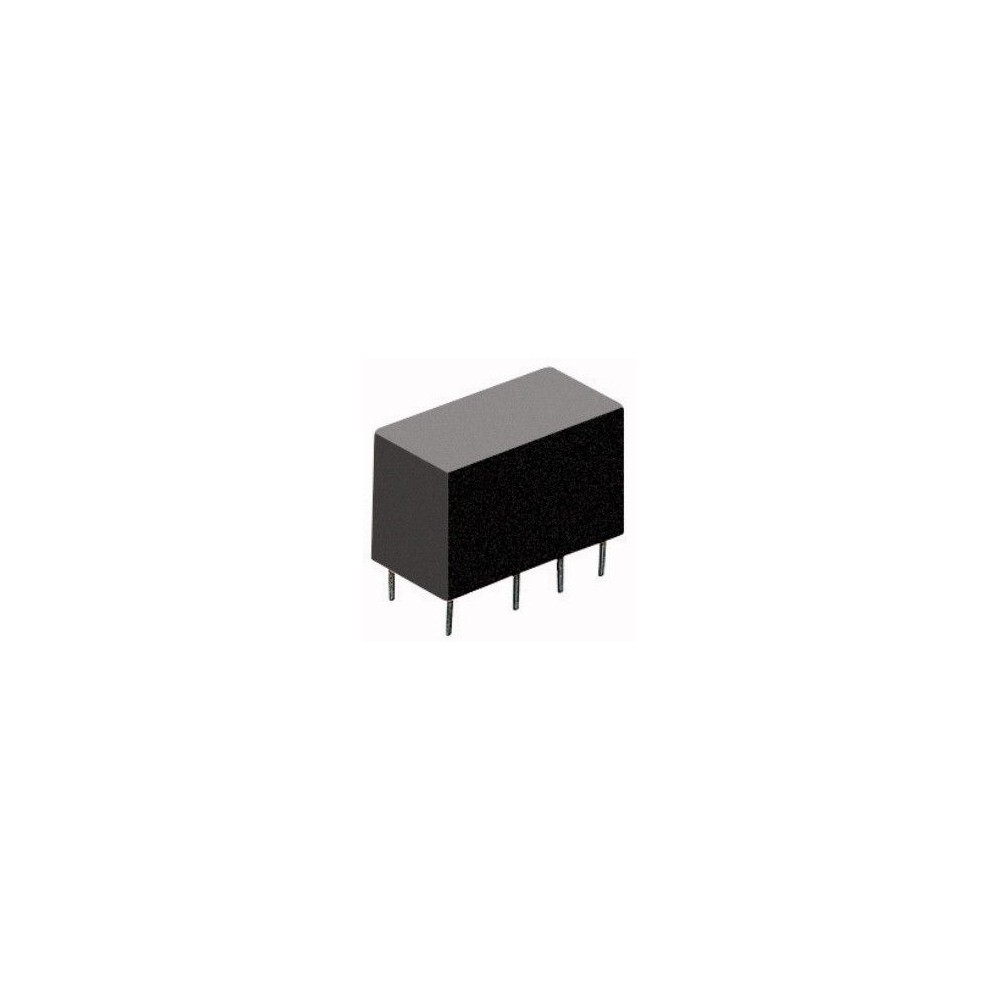

Mini relay 24V 1A 2 exchanges

Mini relay 24V 1A 2 exchanges

€ 4.70
Tax included
In stock
Hongfa relay
4/07468

Mini relay 24V 1A 2 exchanges

Mini relay 24V 1A 2 exchanges

Monostable relay with double exchange at 24Vdc power supply, ideal for electronic circuits.

Details:

Brand: Hongfa Relay
Model: HFD27/024-H
Nominal coil voltage: 24 Vdc
Minimum coil voltage: 19.2 Vdc
Maximum coil voltage: 55.2 Vdc
AC load capacity: 1A / 125Vac
DC load capacity: 2A / 30Vdc
Maximum switching voltage: 120Vdc / 240Vac
Mounting: PCB
Coil resistance: 3.84Kohm

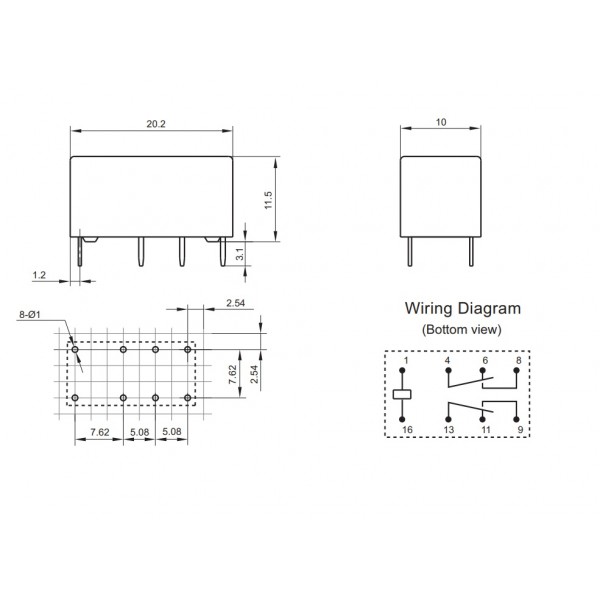

Dimensions: 20.2x10x11.5mm
Coil consumption: 150mW

Hongfa relay
4/07468
8029564362876
24 Items

Data sheet

Tensione
24v
Contacts configuration
DPDT
