Relay 6V 8A 2 exchanges

Relay 6V 8A 2 exchanges

€ 5.40
Tax included
In stock
Hongfa relay
491719551

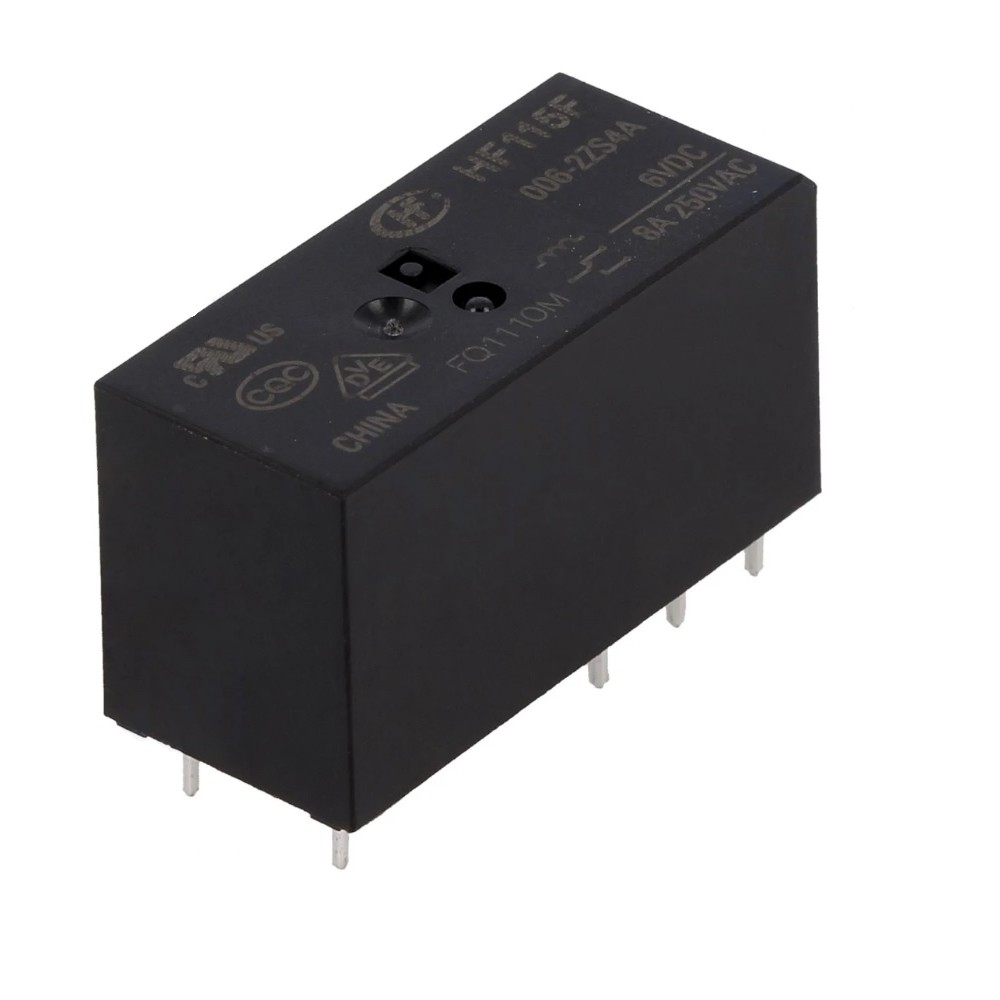

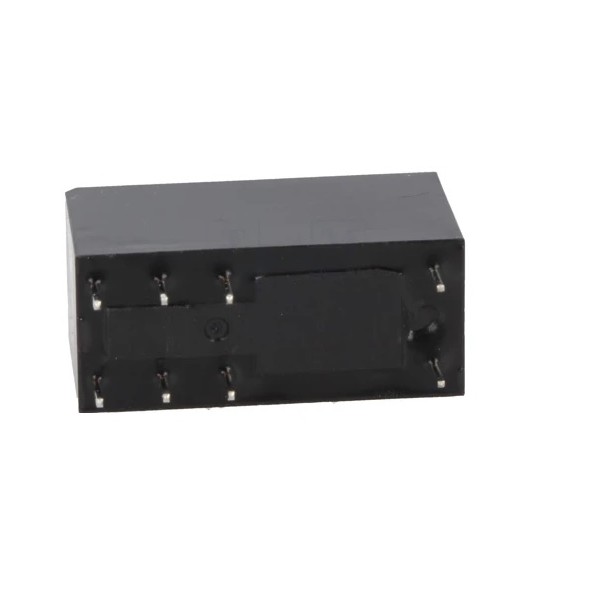

Relay 6V 8A 2 exchanges HF115F

Relay 6V 8A 2 exchanges HF115F

Hongfa relay HF115F series miniature industrial relays for general purpose applications. All relays are designed for mounting on printed circuit boards or on push-in sockets.

Details:

Model: HF115F / 006-2ZS4A
Brand: Hongfa Relay
Contact type: 2
Max AC capacity: 8A / 250Vac per contact
Max DC capacity: 8A / 24Vdc per contact

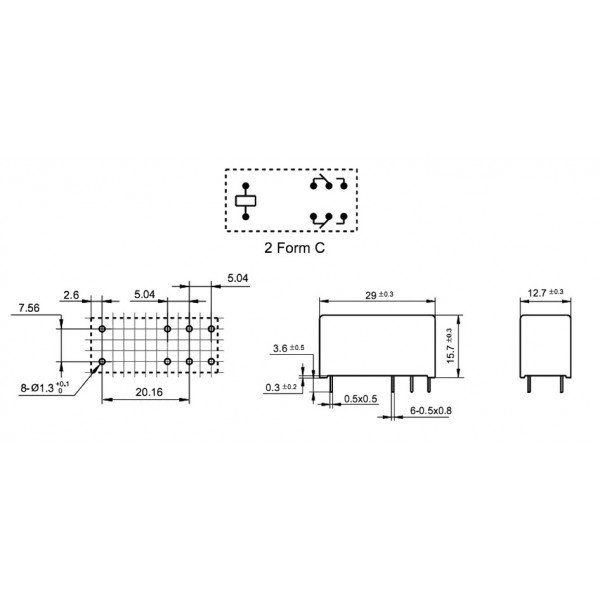

Dimensions: 29x12.7x15.7mm
Coil resistance: 90 Ohm
Minimum coil voltage: 4.2Vdc
Maximum coil voltage: 9Vdc
Sealing class: IP67

Hongfa relay
491719551
4917195510008
9 Items

Data sheet

Tensione
6v
Contacts configuration
DPDT
