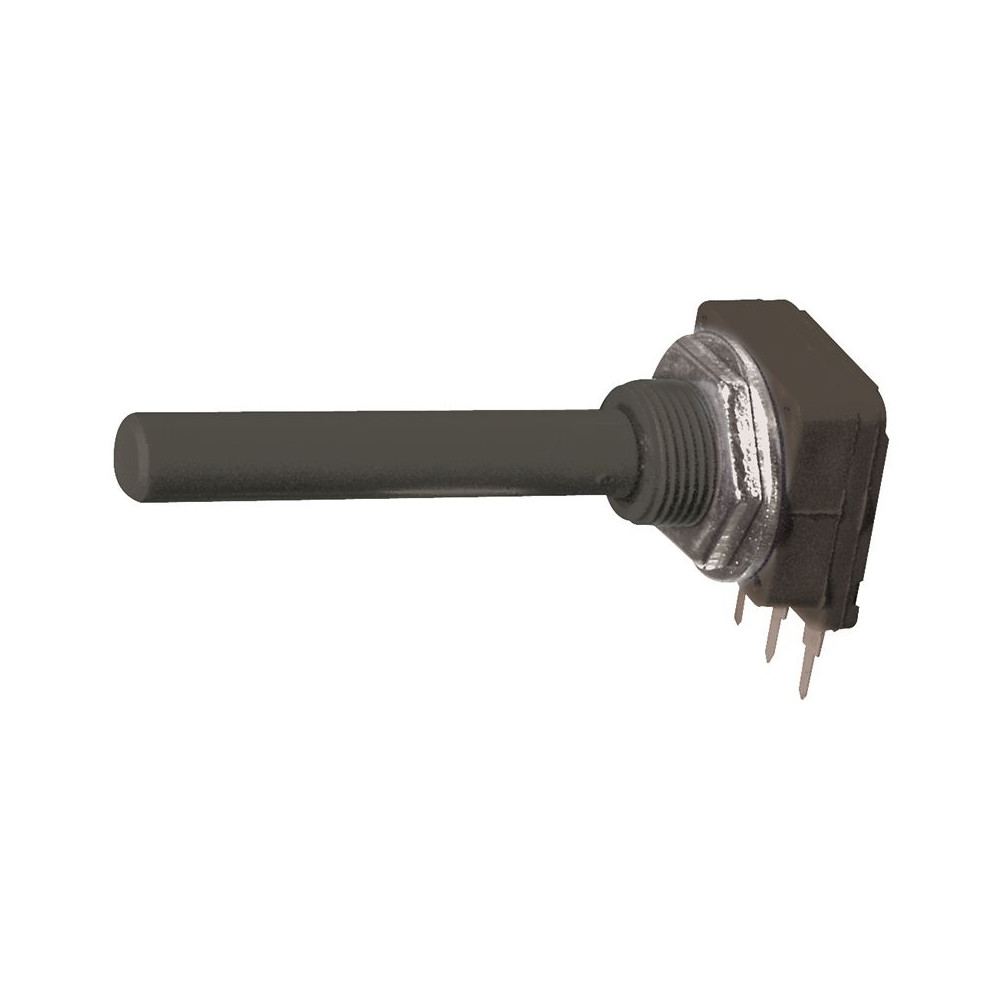

Potentiometer 4.7Kohm linear

Potentiometer 4.7Kohm linear

€ 2.00
Tax included
In stock
Elcart
2/01215

Potentiometer 4.7Kohm linear 0.25W

4.7K ohm linear potentiometer

Plastic body carbon film potentiometer, with linear variation for boards or projects. The linear slide potentiometer is a high quality component designed to ensure precise and reliable adjustment. This potentiometer features a moving slider that moves along a resistive track, allowing you to vary the resistance smoothly. Linear regulation means that the change in resistance is proportional to the movement of the slider along the track.

This linear slider potentiometer is made of high quality materials to ensure long life and reliable performance over time.

The linear slider potentiometer is used in a variety of applications, such as audio, consumer electronics, measuring instruments, and electronic device control. It can be used to adjust the volume of an amplifier, the brightness of a display or the speed of an engine, just to name a few examples.

Details:

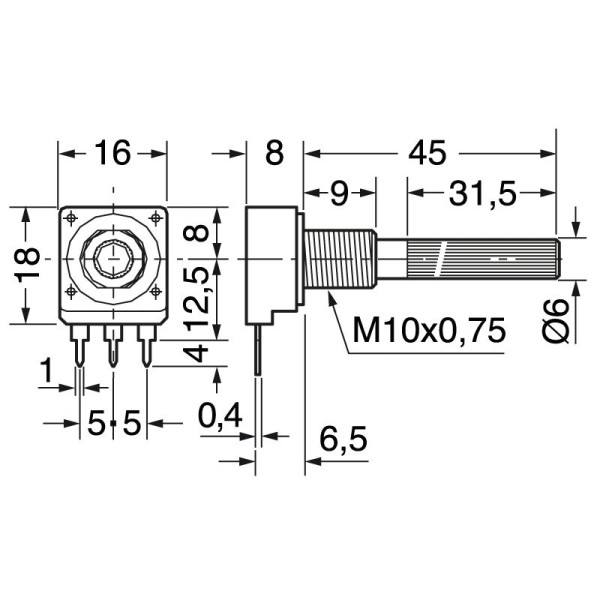

Shaft size: 6mm
Resistive value: 4.7K
Variation: linear
Power: 0.25W
Tolerance: 20%
Rotation angle: 300°
Working temperature: -20 / +70°C

Elcart
2/01215
8029564024729
24 Items

Data sheet

Potentiometers value
4.7K
Variation
Linear
