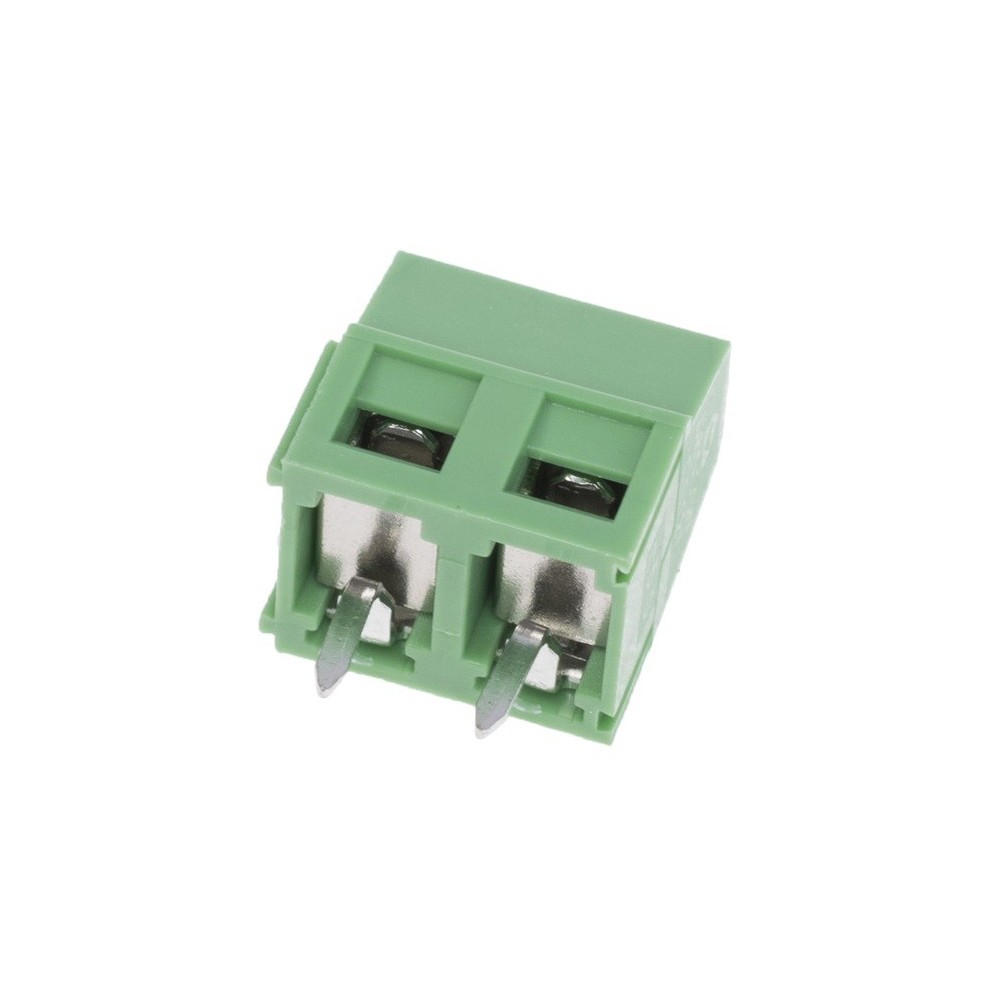

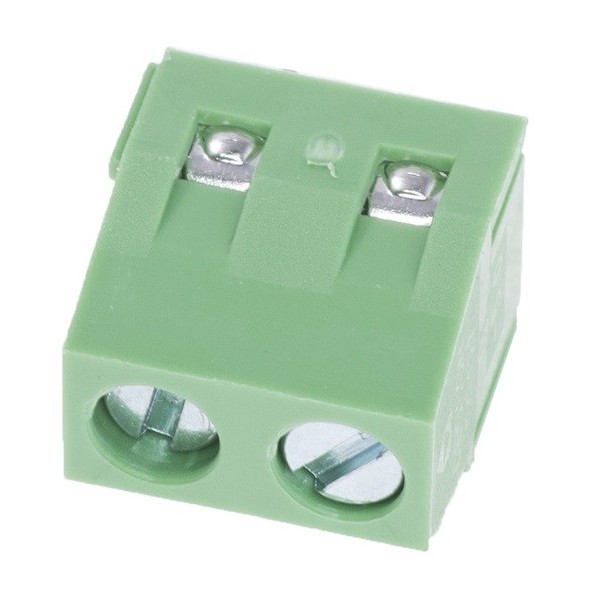

2 Pole terminal block PCB 5.08mm
2 Pole terminal block for printed circuit board 5.08mm pitch, modular and joining
2 Pole terminal block for PCB
Printed circuit terminal block, 2 poles that can be joined and modulated, compatible with the standard Prototype pcb Board, usable in all the most common electronic projects and boards.
Details:
Orientation: 90° angular
Contact pitch: 5.08mm
Number of poles: 2
Mechanical mounting: for PCB
Electrical mounting: lift with screw terminal
Contact coverage: tinned
Rated current: 15A
Height: 10.1mm
Length: 10.16mm
Depth: 8.1mm
Color: green
Voltage nominal: 250V
Case material: PA66
Contact material: brass
Working temperature: -40 - 105 ° C
Conductor cross section: 1.5mm2
Class of combustibility: UL94V-0
Compliance with standards: CE, UL, VDE
