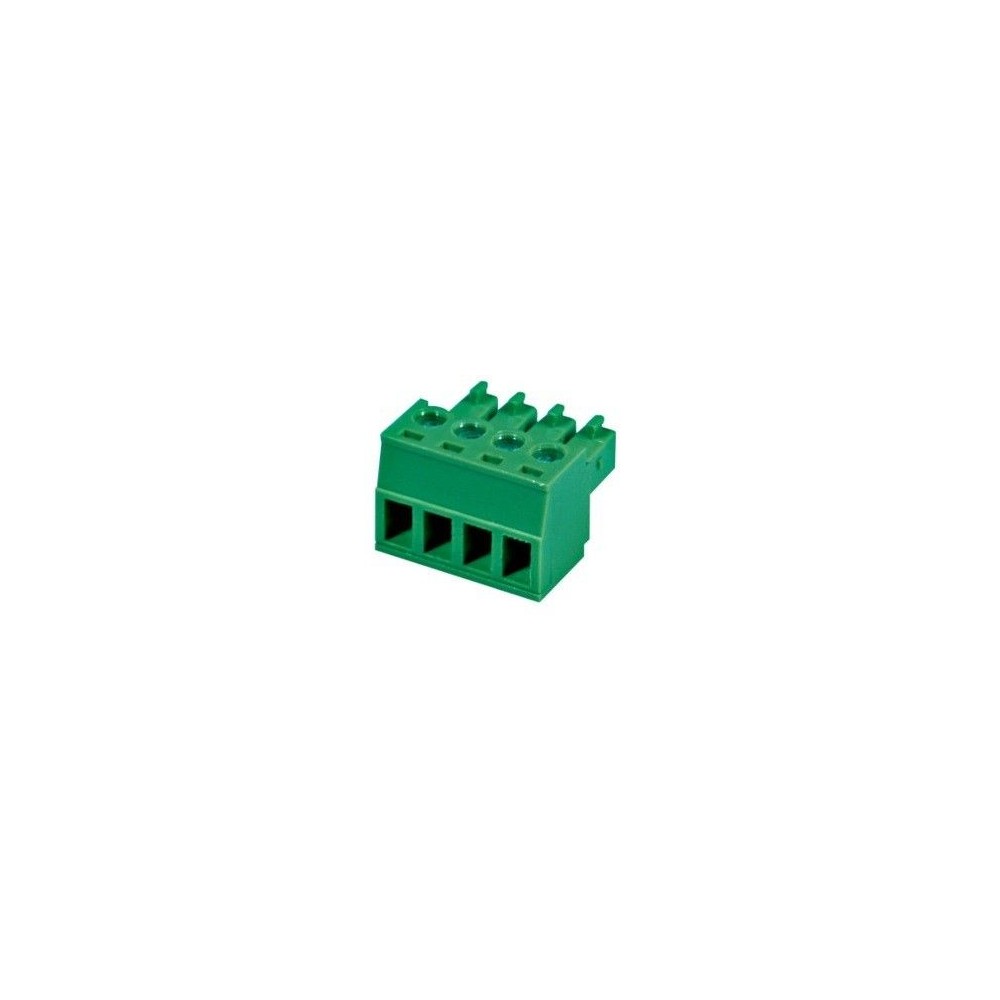

Removable 4-pole female clamp P. 3.81mm
Removable 4-pole female clamp P. 3.81mm MEFA140404
4-pole removable female terminal P. 3.81mm
This 4-way terminal allows you to securely and efficiently connect multiple wires.
Fastening connections on this strip is as easy as tightening a screw thanks to its convenient screw termination method. If problems occur, it is also easily detachable, allowing for quick removal of links if needed. Thanks to its through-hole mounting method, it is quick and easy to set up. It is an extremely versatile connector that accepts rigid and stranded cables with a range of wire sizes up to a maximum of 1.5mm.
Indication of good fire safety, its enclosure is made of green polyamide (PA66) with UL94-V0 certification.
Details:
Body: polyamide 66 green UL94-V0
Pitch: 3.81 mm
Contact: galvanized brass
Trolley: tinned phosphor bronze
Screw: M2.0 galvanized steel
Conductor section: 1.5 mm
Capacity: 8A - 125V
Insulation resistance: & gt; 5 M OHM
Dielectric strength: 2500 V
Insulation strength: A.C. 1500V / Min.
Working temperature: -30 ° / + 120 ° C
Voltage torque: 0.2 Nm
Data sheet
- Connector gender
- Female
- Fixing
- On the cable
- Pin quantity
- 4
- Pin distance
- 3.81mm
