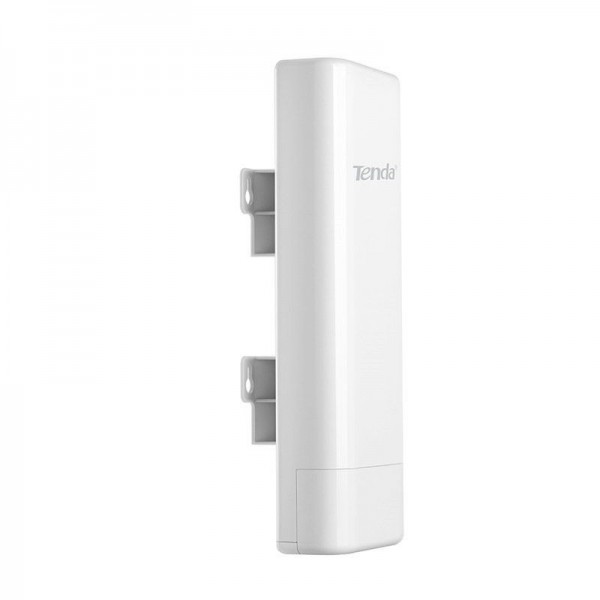

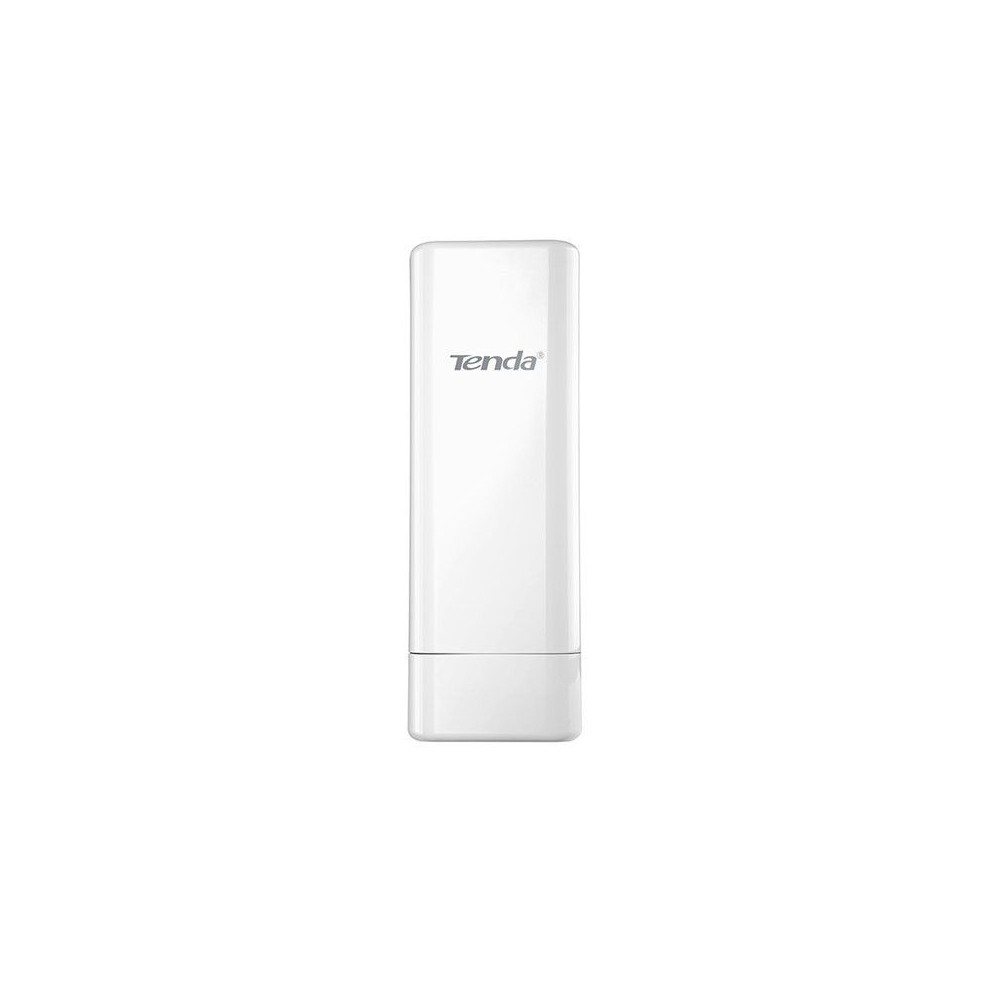

Outdoor access point Tenda O3 IP64 5Km

Outdoor access point repeater Tenda O3 IP64 up to 5Km

The O3 has been designed for WISP CPE solutions, solutions that can guarantee wireless coverage over long distances, ideal for video surveillance and data transmission. It features a 12dBi directional antenna to provide an efficient way to collect and maintain a stable signal for your wireless network. With O3 you will take full advantage of automatic bridging technology. Installation is simple, in fact the two CPEs can connect automatically.

Up to 5km of coverage

The O3 adopts an independent power amplifier and 12dBi directional antenna to provide an efficient way of picking up and maintaining a stable signal for a wireless network of up to 5km.

Automatic bridge for two devices

The O3 adopts auto-bridge technology, two CPES can connect with each other when you turn them on face to face. It is very easy to set up for CCTV surveillance and data.

Smart signal LED indicator

Thanks to the 3 indication LEDs, they represent the signal strength received by O3 from the device connected to it. This is useful for finding the right position and for better performance.

Professional outdoor design

Equipped with IP64 waterproof protection and high quality hardware design, O3 can work in various weather conditions, such as sunshine, rain or extremely low / high temperature environment

Multiple application scenarios

Long distance wireless connection; one works as AP mode and another works as Station mode to create a long distance wireless connection for video surveillance and data transmission.

WISP mode (Client + Router); Connect wirelessly to the WISP station / hotspot to share the Internet with your local wired and wireless network.

P2MP connection

Connect multiple APs in a network, all associated clients can communicate with each other.

Easy to set up and manage

The O3 comes with centralized management software that helps users easily manage all devices on the network from a single PC-CPE Assistant.

Details:

Brand: Tenda
Model: O3
Maximum distance: 5km in free area
Dimensions: 270x94.86x67.5mm
Frequency: 2.4GHz
Maximum speed: 150Mbps

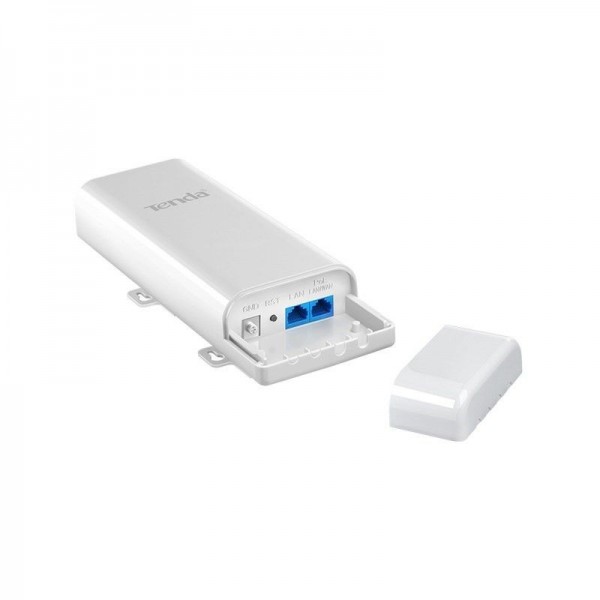

Interface: 2x10 / 100Mbps Ethernet port
Antenna: 12 dB
Signal amplitude: horizontal 60 °, vertical 30 °
Power consumption: 4.3W
Protection: Ip64
Power supply: 12V1A passive PoE
Receiving sensitivity: MCS0: -96dbm, MCS7: -72dbm
Operating modes: AP / Station / WISP / P2MP / WDS Repeater / Router
Protocol Standard: IEEE 802.11b / g / n
Hidden SSID: Supported
Weak Signal Client Restriction: Supported
SSID Isolation: Supported
Client Restriction for SSID: Supported
Transmission power: adjustable from 1dB
Compatible with WMM: supported
Compatible with APSD: supported
Wireless Security: 64/128 WEP, WPA-PSK, WPA2-PSK, WPA & WPA2-PSK , WPA, WPA2
VLAN Tagging for SSID: Supported
DHCP Server: Supported
VPN Direct Line : PPTP, L2TP
Remote web access: supported
Reformatting program: supported
Page deadline: supported
Dynds: noip, dyndns.org
network: Ping, Traceroute, Signal Scan
Time & Date Setting: setting
Backup / restore: supported
Username management: supported
Syslog: supported
Package contents: 1x5km O3 repeater , 1xPower supply, 1xPoE injector, 1x Quick guide
Working temperature: -30 ℃ + 60 ° C
Default settings: Default login IP: 192.168.2.1, Default Login Username: admin, Default Login Password: admin
Certifications: FCC / CE / RoHS
