Ajax Starterkit CAM HUB 2 alarm kit white

Ajax Starterkit CAM HUB 2 white alarm kit

The StarterKit Cam wireless security kit protects you from robbery. Ajax will immediately notify you and the security company of the door breakage and in less than 9 seconds will send a photo from the scene. Control your security system from anywhere in the world with a smartphone. Don't worry about blackouts and internet signal interruptions. The hub will remain guarding the house thanks to a reserve battery and 2 SIM cards.

The starting point for maximum protection

StarterKit CAM represents the basis for building a complete security system that protects against intrusions, with the possibility of having frames from the MotionCam motion sensors to see if it is a false signal / animal or a real entry attempt. Hub CAM 2 monitors the operation of all Ajax devices to alert users to open doors, broken windows, fire threats and floods. If thieves break into your home, Hub 2 transmits images from the MotionCam detectors and alerts Security Company 1 of the danger. You don't have to live under the constant supervision of security cameras to know what's going on.

Alarm with photo verification in 9 seconds

Hub 2 works with MotionCam and MotionCam Outdoor motion detectors. When activated, they take a series of photos and allow you to evaluate a situation on the system. Visual verification saves users from worries and security institutions from unnecessary patrol mobilisations.

Always connected - via cable and cellular networks

Communication with the outside world is essential for the security system control panel. Its reliability and stability guarantees timely sending of the alarm to the security company and users.

Hub 2 can be connected simultaneously to internet service providers: via Ethernet cable and 2G cellular networks. Automatic switching between channels takes place in a few seconds.

Guaranteed delivery of alarms and photo-verifications

To ensure reliable communications, we equipped Hub 2 with four antennas and support for two proprietary radio protocols: Jeweler and Wings. Jeweler takes care of the transmission of commands, events and alarms, while Wings takes care of the batch transmission of images. Ajax two-way radio communication uses framing to synchronize device communication, authentication to eliminate forgery, and encryption to protect against data leaks.

Flexibility at the center

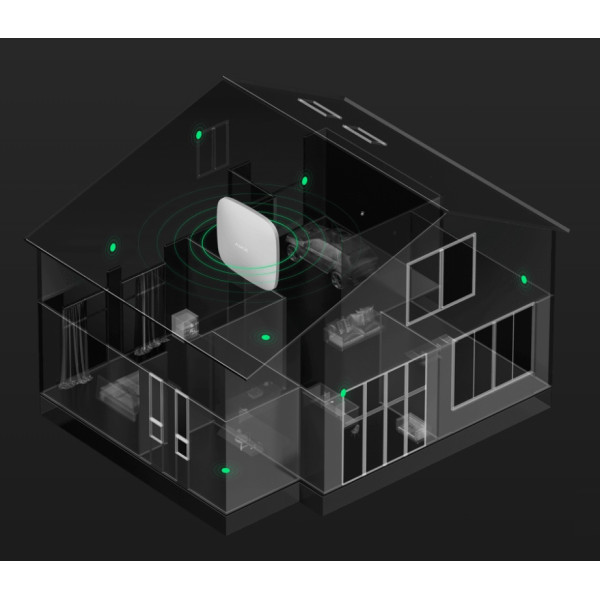

The Hub 2 radio network covers several floors and separate buildings: thanks to a communication range of 2000 meters and the possibility of connecting up to 5 repeaters. To manage access to the plant's security areas, the hub allows the connection of 50 users and the creation of 9 security groups. Hub 2 is a perfect choice for home and business security.

Details:

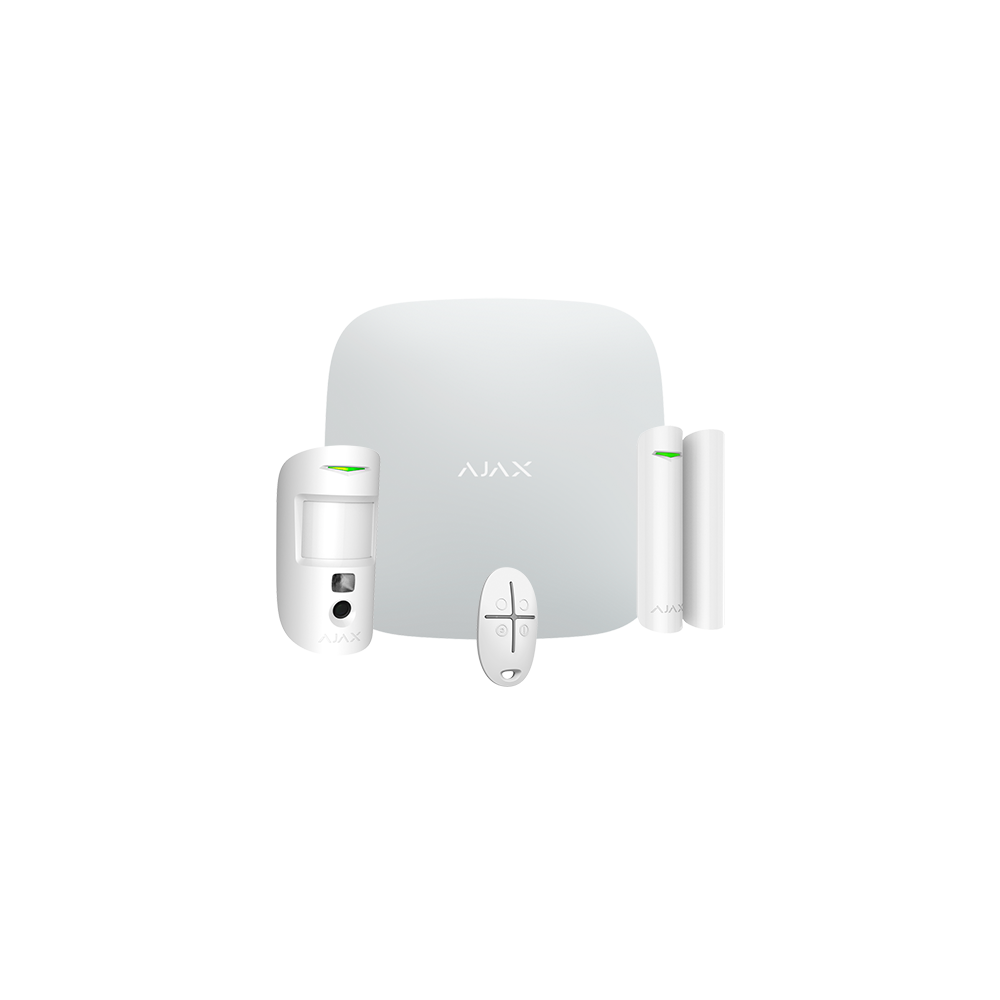

Kit composition: 1 x Hub 2 (2G) Jeweller, 1 x MotionCam Jeweller, 1 x DoorProtect Jeweller, 1 x SpaceControl Jeweller
Maximum number of connected devices: 100, up to 10 sirens, up to 5 repeaters
Maximum number of users: 50
Number of scenarios: up to 32
Security areas: up to 9
Rooms: up to 50
Repeater compatibility: Rex Jeweller, Rex 2 Jeweller
App: iOS 13.0 and later, Android 5.0 and later
Wings communication technology: proprietary radio communication technology to transmit photo-verifications of alarms with advanced anti-sabotage system
Power supply: 230Vac
Alarm signal reception time: 0.15s
Jeweler radio technology: communication range with the central unit up to 1700 m in open spaces, two-way encrypted communication between devices.
Radio frequency bands: 866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz (depends on country of sale)
Maximum Effective Radiated Power (ERP): ≤ 20 mW
Encryption: Block based on AES algorithm
Polling period of detector: 12 - 300 s
Communication channels: Ethernet, 2 x 2G (GSM900/DCS1800 (B3/B8))
Supported SIM card: micro SIM
Video surveillance: up to 25 cameras or DVR supported
Photo verification types: photo by alarm, photo by scenario, photo on request (only for PhOD sensors)
Photo delivery time: up to 9 seconds (standard setting)
/>Photo resolution: 640x480px
Number of frames: from 1 to 5 settable
Backup battery: yes, Li-ion 3 Аh up to 15 hours of offline use without active ethernet
Dimensions: 163 × 163 × 36 mm
