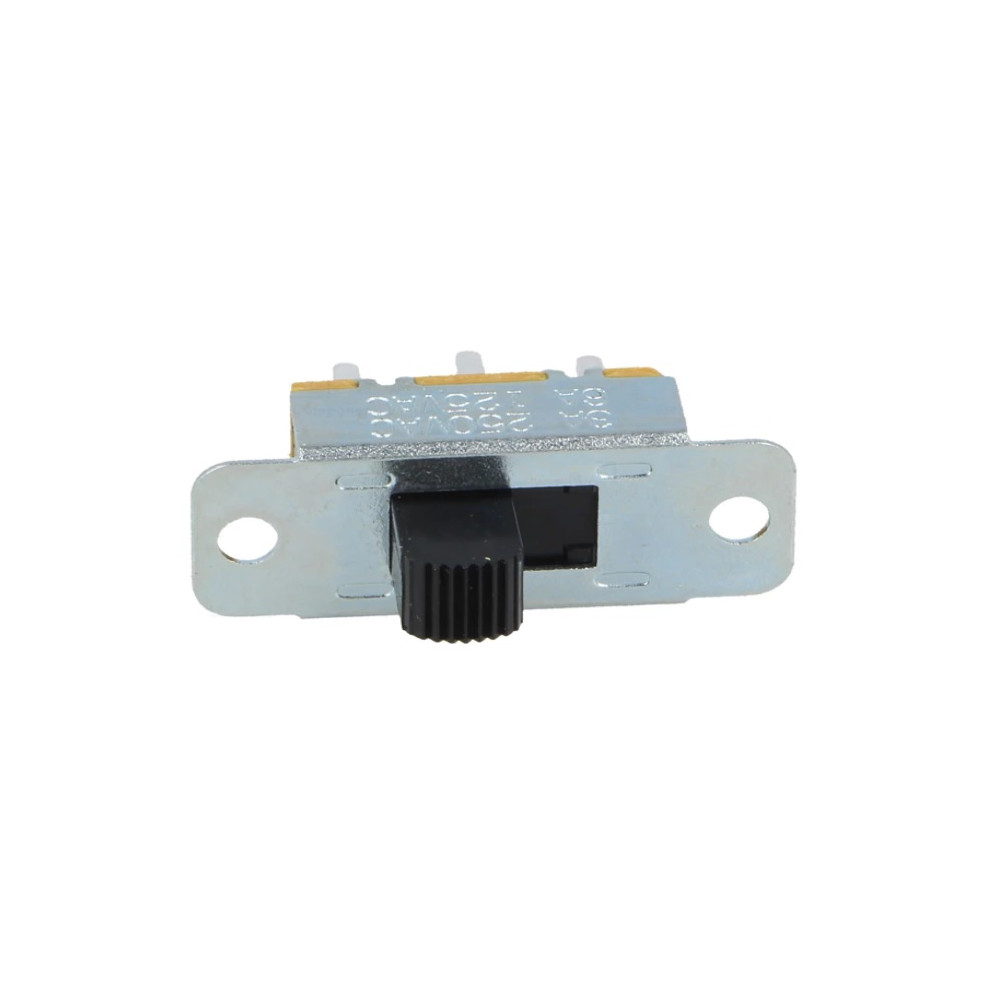

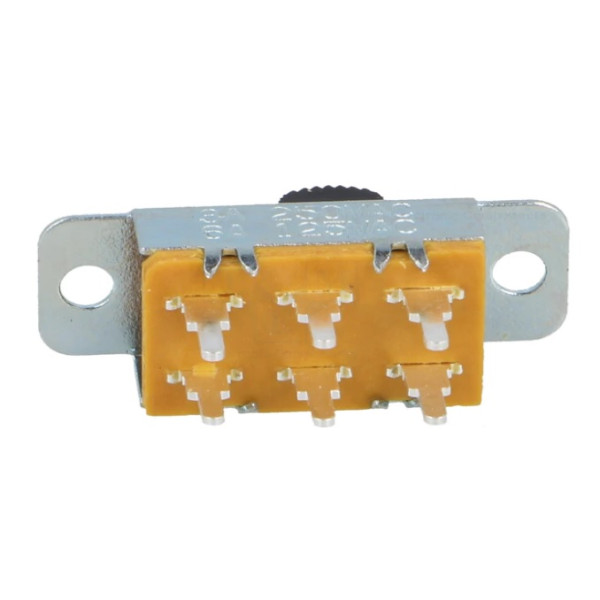

2-position bipolar slide switch 3A
2-position bipolar slide switch 3A
Double slide diverter 2 positions 3A
Double slide switch with two On - On positions, with a maximum current tolerance of 3A 250Vac. Thanks to its characteristics it allows you to turn on or off a device connected to it, with a maximum power of 3A. THT solder diverter terminals, which allows for stable and long-lasting contacts. Panel fixing using the two side screws.
Details:
Type: slide switch
Number of positions: 2
Switching type: ON - ON
Contact configuration: DPDT
Maximum current: 3A - 250Vac
Case dimensions : 35x13.2x7.5mm
Contact cover: silver
Lead spacing: 7.16mm
Contact material: phosphoric bronze
Slide height: 9mm
Pin color: black
Screw hole diameter: 3.5mm
