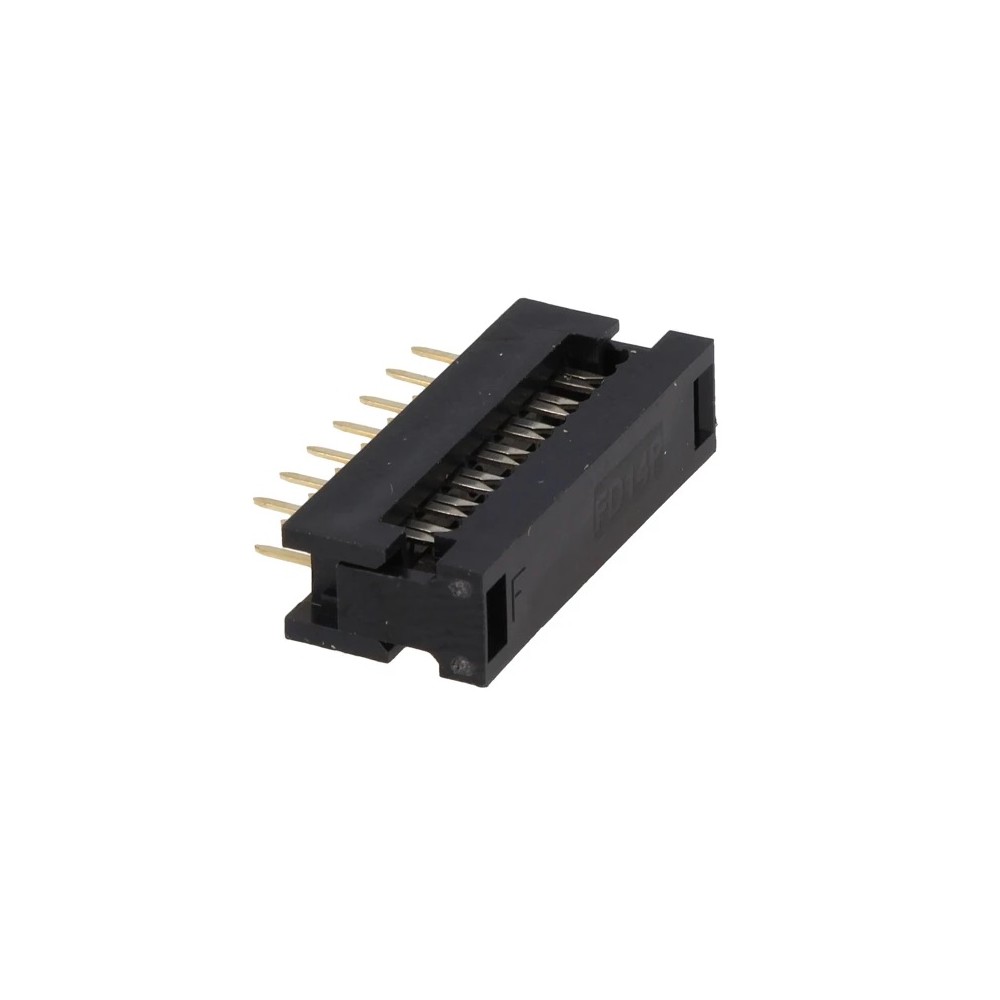

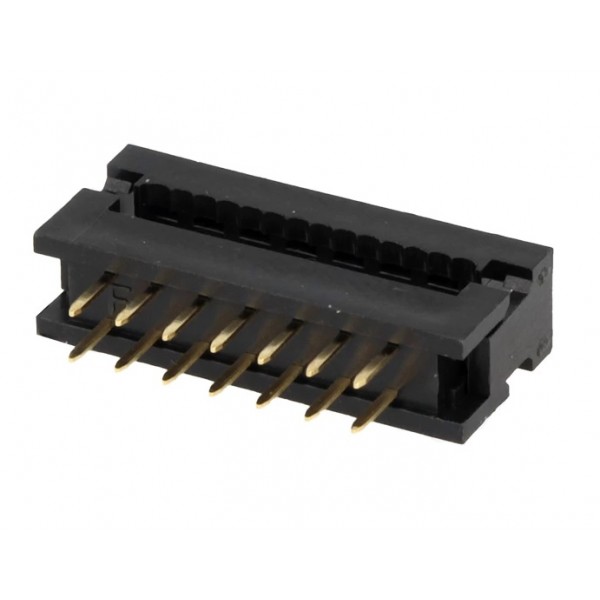

14-pin IDC connector for PCB
14-pin IDC connector for PCB
14-pin IDC connector from board with narrow pitch for flat linear cable
14-pin IDC narrow board connector for dual in line flat cable. For easy mating with all IC sockets, these connectors allow for easy circuit inspection and maintenance. AWG 28 cable (1.27 mm pitch) is recommended.
Details:
Pin spacing: 2.54 mm
Pitch between the two rows: 5.08 mm
Contacts: phosphor bronze, gold over nickel
Insulator: PBT and glass fiber UL-94 V0
Maximum range: 1 A
Contact resistance: 30 mOhm max @ 6 Vdc 0.3 A
Insulation resistance: 1000 MOhm min @ 500 Vdc
