MODU I 280591 series AMP 4-pole female connector
MODU I 280591 series AMP 4-pole female connector

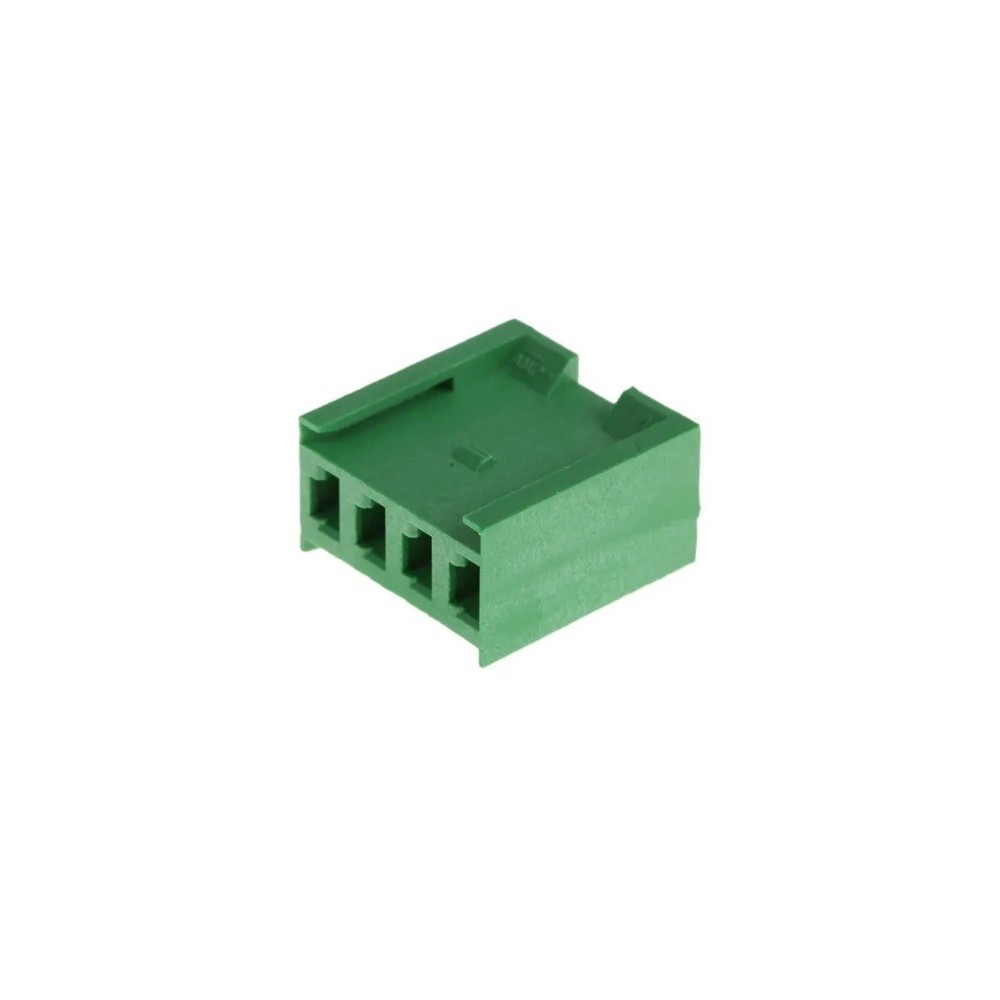

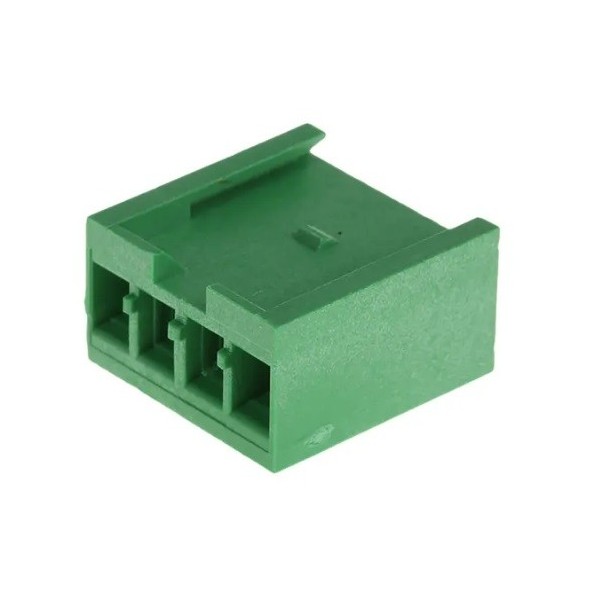

4-pole AMP female connector MODU I 280591 series
This range of Modu I socket housings consists of single row connectors in fiberglass and green polycarbonate. The AMP MODU I 3.96mm Interconnect System is a robust large scale interconnect system. This type of connector is suitable for board-to-board and wire-to-board applications and consists of PCB connectors and cable mount sockets. Side by side to get more routes without losing intermediate steps.
Details:
Model: 280591
Pin spacing: 3.96mm
Body: green glass-filled polycarbonate
Number of poles: 4
Combustibility: 94V1
Maximum capacity: 5A
Working temperature: -40 ° C / + 105 ° C
98/12835
8029564169079
18 Items
Data sheet
- Connector gender
- Female
- Fixing
- On the cable
- Pin quantity
- 4
- Pin distance
- 3.96mm
