4-pole male connector for PCB AMP MODU II series 280371-1

4-pole male connector for PCB AMP MODU II series 280371-1

€ 0.80
Tax included
In stock
Ceb
5/05502

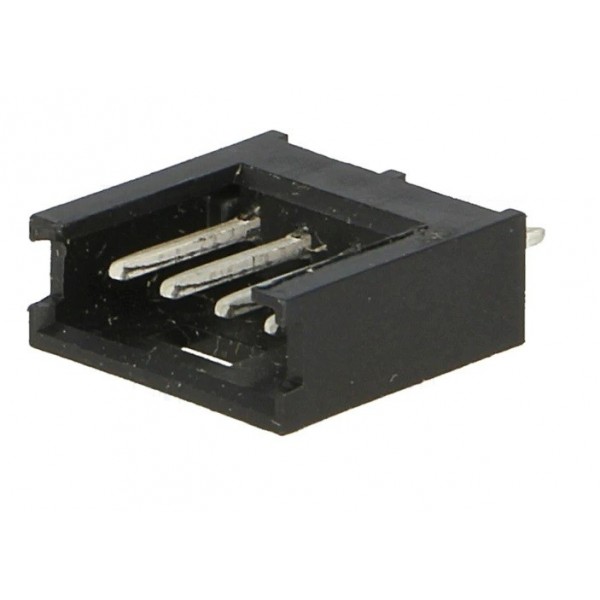

4-pole male connector for PCB AMP MODU II series 280371-1

4-pole PCB male connector from AMP MODU II 280371-1 series

Protected connectors for AMP MODU II PCB with 2.54 mm pitch and protection on 3 sides. The enclosures of these AMP MODU II protected connectors are polarized to avoid mismating. The stop window in the enclosure allows for secure locking of the connection with the mating female connector. These AMP MODU II protected PCB connectors are suitable for use in a wide range of applications. Applications include automotive, industrial controls and test equipment, computers, telecommunications, medical instruments, storage devices and other equipment

Details:

Model: 280371-1
Pin spacing: 2.54mm
Body: black glass-filled polyester
Number of poles: 2
Combustibility: 94V0
Maximum flow rate: 3A
Working temperature: -65 ° C / + 105 ° C

Ceb
5/05502
8029564069232
16 Items

Data sheet

Connector gender
Male
Fixing
PCB
Pin quantity
4
Pin distance
2.54mm
