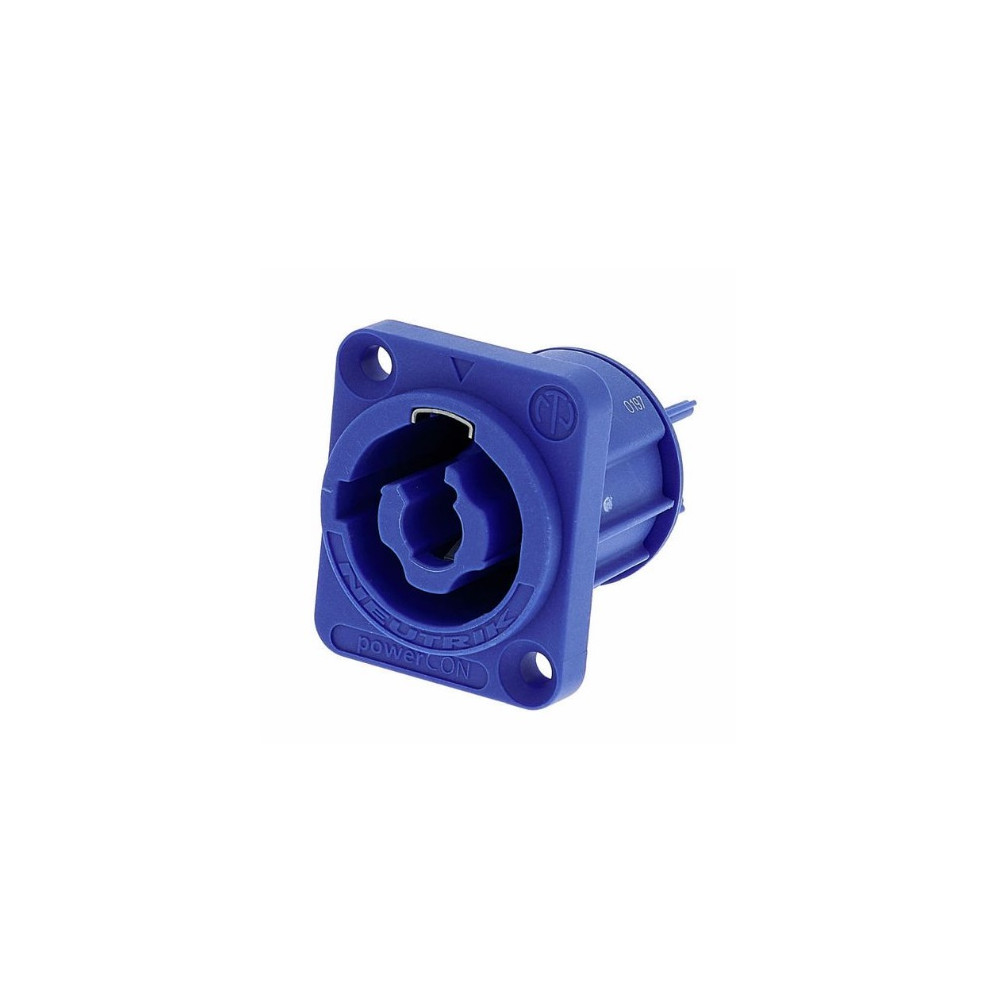

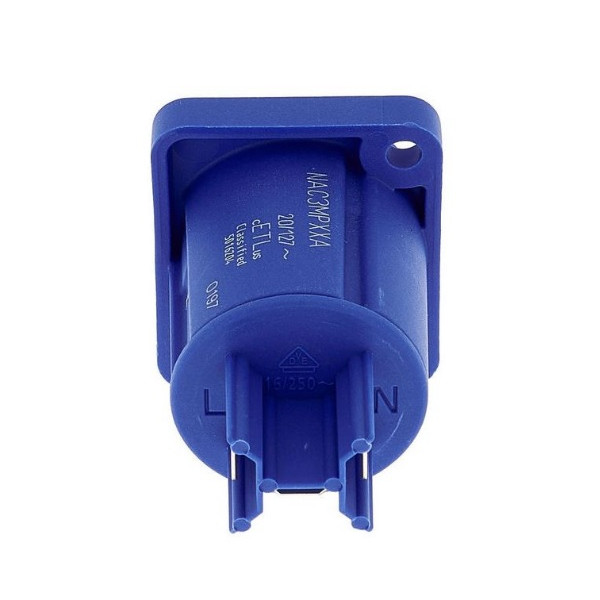

Neutrik blue 20A powercon socket for NAC3MPXXA panel

Powercon Neutrik blue 20A panel socket

€ 5.20
Tax included
In stock
Neutrik
NAC3MPA-1

Neutrik blue 20A powercon socket for NAC3MPXXA panel

Blue 20A Neutrik panel powercon socket NAC3MPXXA

This connector fully complies with the IEC 62368-1 device standard, thanks to the certification of its components according to IEC 60320-1. Panel mount female connector for appliance input, 3/16" flat tab terminals. The powerCON NAC3MPXXA is a power mains connector with a quick locking and unlocking mechanism.

Replace old, unsafe connectors and install these high-quality plugs wherever a very reliable solution in combination with a locking device is needed to ensure a secure electrical connection.

The powerCON NAC3MPXXA is a connector with breaking capacity (CBC), meaning it can be connected or disconnected under load or under voltage.

Details:

Brand: Neutrik
Model: powercon
Fixing: panel
Code: NAC3MPXXA
Number of poles: 3
Maximum current: 20A
Voltage: 250Vac
Certifications: IEC 60320-1, UL 60320-1, UL-1977, & CAN/CSA-C22.2 No. 182.3
Flammability: UL94 V-0
Max conductor cross-section: 2.5mm (12AWG)
Contact plating: silver
Block material: steel
Shell material: Polyamide (PA 6.6)
Contacts: copper
Waterproofing: IP20
Working temperature: -30 / +80°C

Neutrik
NAC3MPA-1
1100048008934
13 Items

Data sheet

Fixing
Panel
