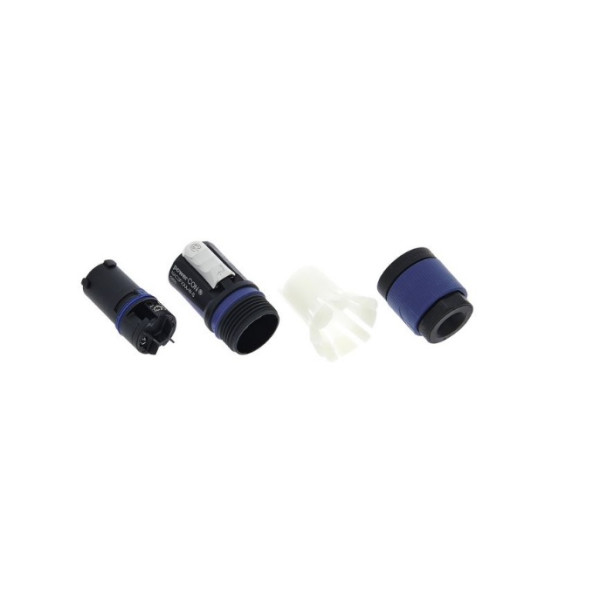

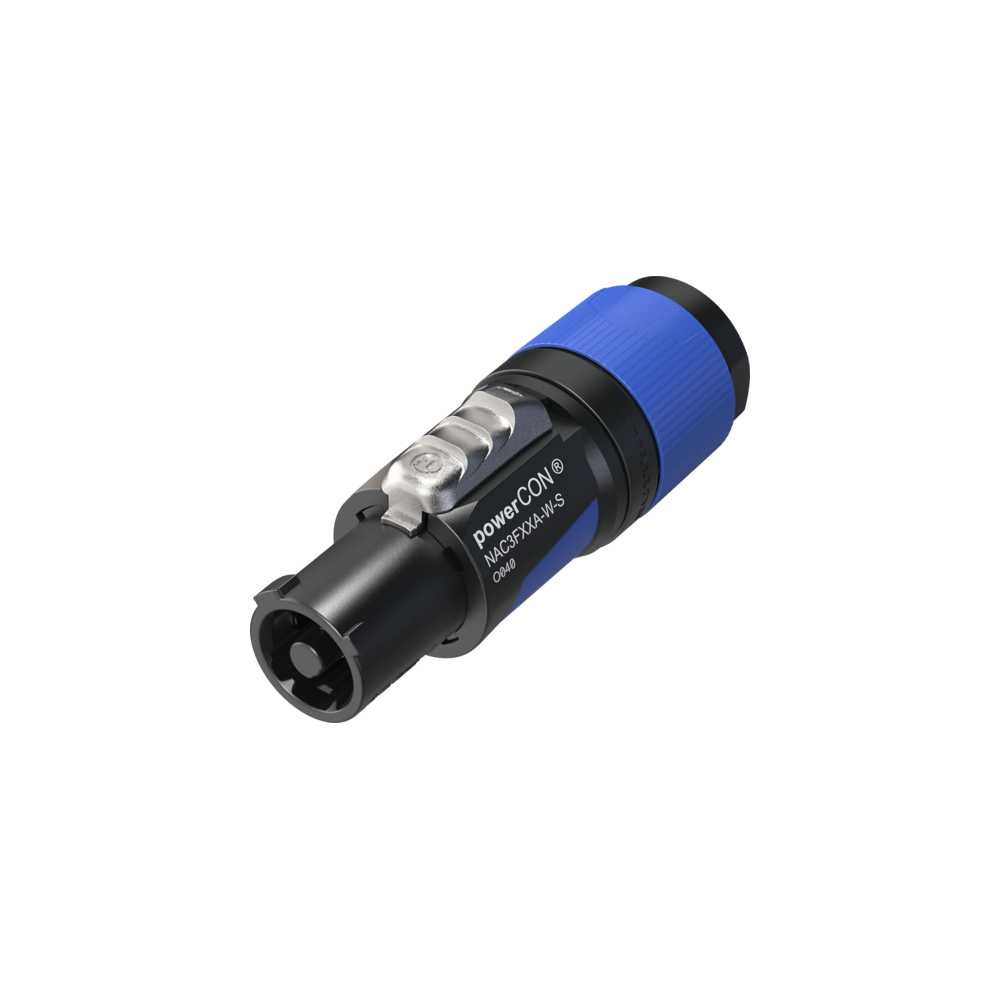

Neutrik blue 20A powercon plug NAC3FXXA-W-S

Neutrik blue 20A powercon plug

€ 11.50
Tax included
In stock
Neutrik
NAC3FCA

Neutrik blue 20A powercon plug NAC3FXXA-W-S

Powercon Neutrik blue 20A plug NAC3FXXA-W-S

AC power cable locking connector, Allen screw terminal mounting, for cable diameters from 6 to 12 mm.

The powerCON NAC3FXXA-W-S connector is a quick-disconnect single-phase (3-conductor) power connector with circuit breaking capability when paired with powerCON XX series receptacles.

Replace old, unsafe connectors and install these high-quality plugs wherever a very reliable solution in combination with a locking device is needed to ensure a secure electrical connection.

Details:

Brand: Neutrik
Model: powercon
Fixing: free-wheel
Code: NAC3FXXA-W-S
Number of poles: 3
Maximum current: 20A
Voltage : 250Vac
Certifications: IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1, IEC 60799 / UL 817
Flammability: V-0
Max conductor section : 1.5-2.5mm (16-12AWG)
Outer cable diameter: 6-12mm
Contact plating: Silver
Block material: Zinc
Shell material: Polyamide (PA 6.6)
Contacts: copper
Waterproof: IP20
Working temperature: -33 / +80°C

Neutrik
NAC3FCA
1100048031055
10 Items

Data sheet

Fixing
On the cable
