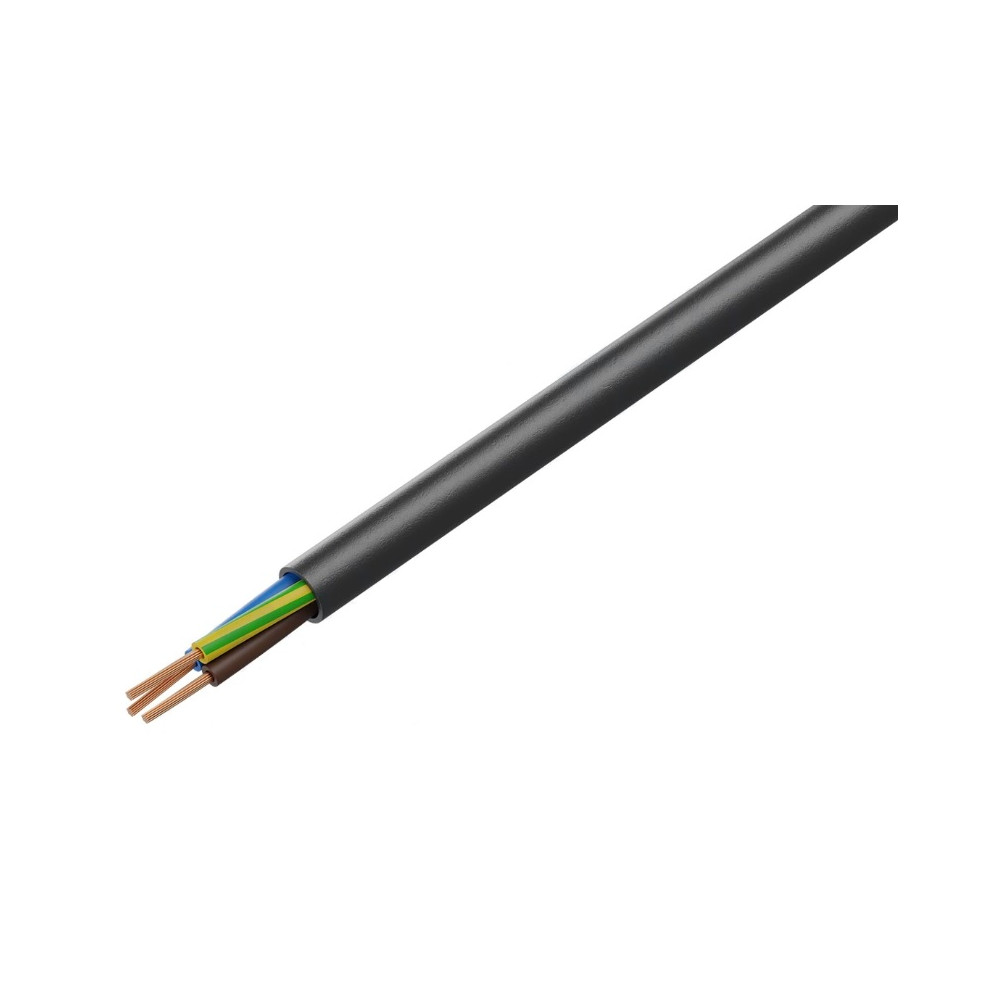

Electric cable 3x1.5mm black

3x1.5mm black electric cable

3G1.50 mm H05VV-F pure copper electric cable, ideal for electrical connections of all kinds. This cable is coated with a tough PVC jacket for conductor protection, and can withstand voltages up to 500V. Internally each conductor is colored with the 3 main colors for the electrical network to easily recognize the conductor. Ideal for electronic equipment and professional machinery thanks to the quality of its pure copper conductors, guaranteeing the best possible conductivity.

The materials used in the production are cadmium-free and silicone-free and free from substances harmful to the wetting properties of paints.

Self-extinguishing and flame retardant PVC acc. according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent to DIN VDE 0472 part 804 test method B).

These cables are particularly suitable for use for appliances with medium mechanical stress in homes, kitchens and offices, also domestic appliances in damp and wet areas, e.g. refrigerators, washing machines, spin-drivers etc. as far as this cable is allowed to the relevant equipment specifications. These leads are suitable to be used for cooking and heating appliances provided the lead does not come into direct contact with hot parts of the appliance and is not otherwise affected by heat, and complies with the stated temperature ranges. The cables are suitable for fixed installation in furniture, partition walls, decorative cladding and in cavity walls of prefabricated building parts.

They are not qualified for outdoor use or for use with industrial and agricultural machinery, exceptionally in tailoring, etc.

The indicated price refers to the metre.

Details:

Brand: Helukabel
Cable type: H05VV-F
Internal section: 3 x 1.5mm
Use temperature: -5 / +70 °C
Nominal voltage: U0 /U 300/500 V
Insulation resistance: min. 20 MOhm x km
External diameter: 7.9 - 9.4mm
No. AWG: 16
Conductor structure: Copper conductor, to DIN VDE 0295 class 5, fine wire, BS 6360 cl.5, IEC 60228 cl.5
Conductor insulation: PVC compound type TI2 according to DIN VDE 0207-363-3 / DIN EN 50363-3
