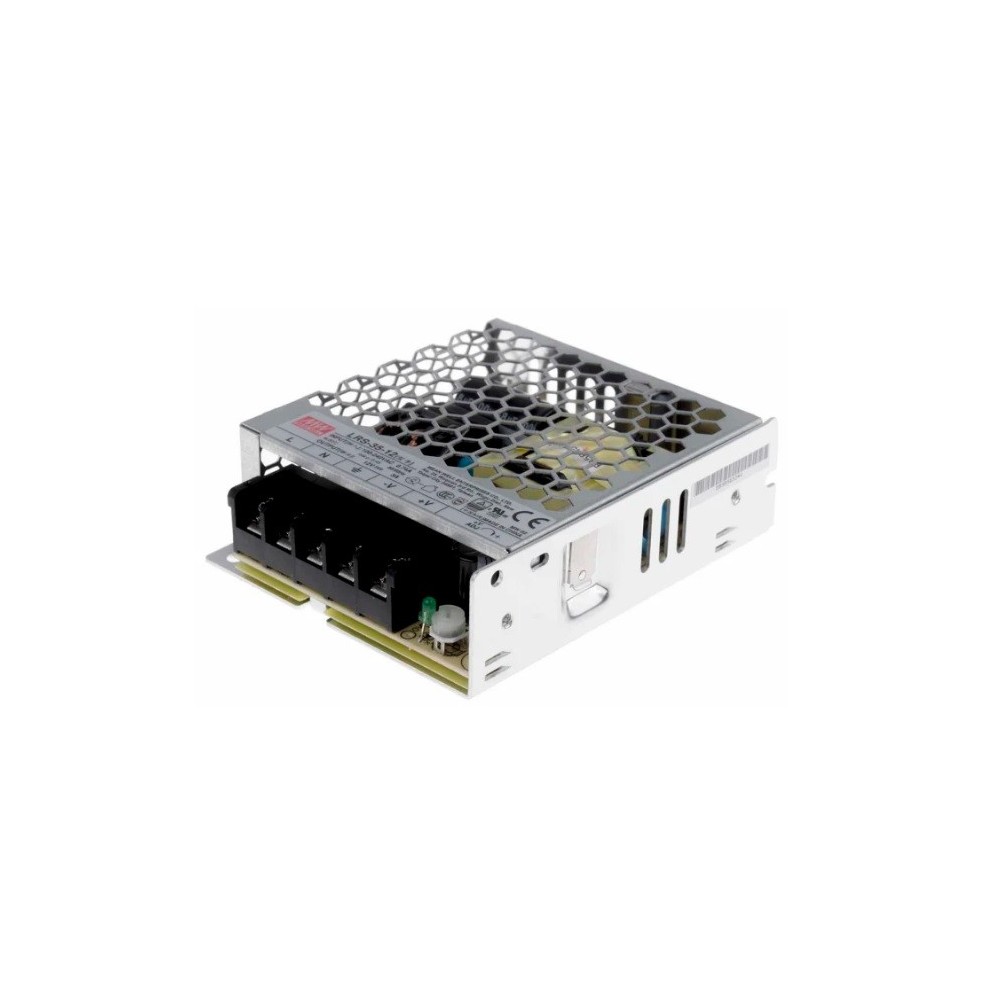

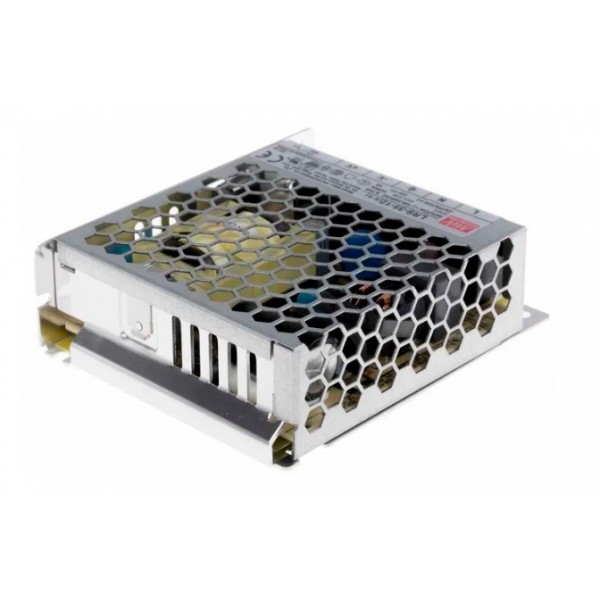

Professional 12V DC 3A power supply LRS-35-12

Professional 12V DC 3A power supply LRS-35-12

€ 19.90
Tax included
Last items in stock
Ceb
LRS-35-12

Professional 12V DC 3A power supply LRS-35-12

Professional 12V DC 3A power supply LRS-35-12

The LRS-35 Series of 35W Single Output Enclosed Type Power Supplies offers extremely efficient low profile products. The LRS-35 series has been designed for use in the most demanding applications, thanks to the metal mesh and natural air convection to ensure excellent heat dissipation. The LRS-35 series has been designed with a focus on efficiency, and offers extremely low power consumption without load. Installation in multiple test environments is possible thanks to 5G vibration resistance.

General features:

- AC input universal / full range, with input voltage spikes from 5 seconds to 300Vac
- Up to 89% rated efficiency, with less than 0.2W of power consumption under no load.
- 5G of vibration resistance.
- Natural convection cooling.

Details:

Power: 35W
Output voltage: 12V DC
Max output current: 3A
Tolerance: 10.2V - 13.8V

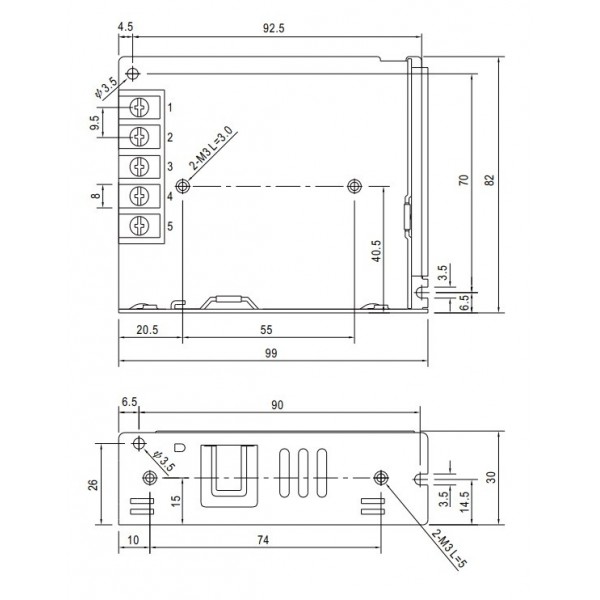

Dimensions: 99x82x30 mm

Ceb
LRS-35-12
8006012333664
1 Item

Data sheet

Tensione
12v
W
35
A
3
