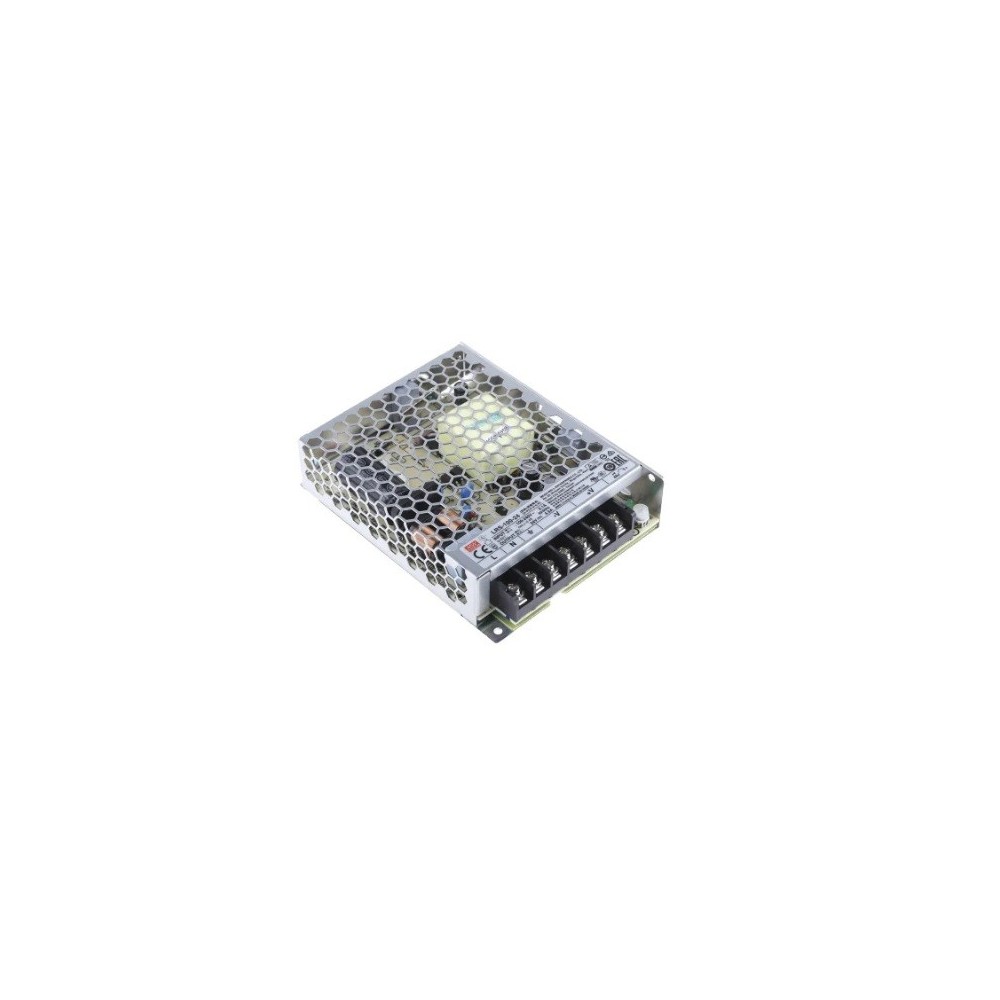

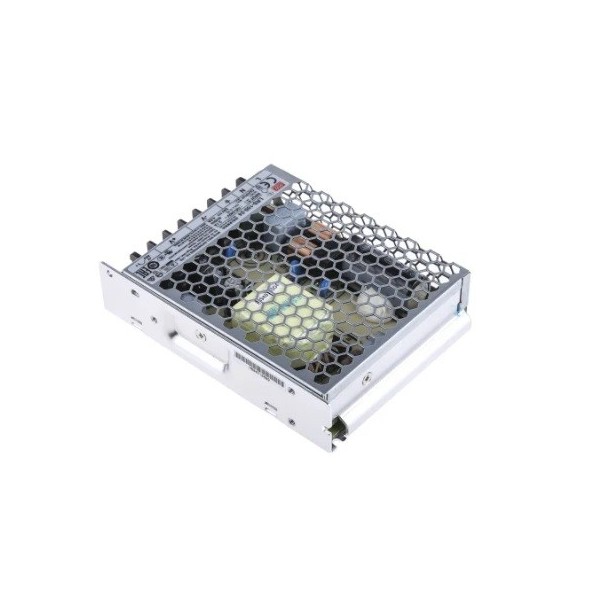

24V DC 4.5A professional power supply LRS-100-24

24V DC 4.5A professional power supply LRS-100-24

€ 22.90
Tax included
In stock
Ceb
LRS-100-24

24V DC 4.5A professional power supply LRS-100-24

Professional 24V DC 4.5A power supply LRS-100-24

The MeanWell LRS-100 Series 108W Single Output Switching Power Supply has a rated output current of 4.5A at 24Vdc. It is equipped with a universal input power voltage ranging from 85VAC to 264VAC / 120Vdc to 373Vdc. The device provides a metal mesh and air convection to ensure excellent heat dissipation. This power supply can offer extremely low power consumption under no load. The power supply meets anti-vibration requirements up to 5G and makes it ideal for installation in test environments.

General features:

- Withstands 300VAC voltage spikes for 5 seconds
- High operating temperature, up to 70 °C
- Passes 5G vibration test
- Operates up to a height of 5,000 m
- High efficiency, long life and reliability
- Miniaturized dimensions, high power density
- Free air convection cooling
- Short circuit / overload protections / Over voltage
- Safety standard: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1 / -2-16, CCCGB4943

Details:

Power: 108W
Output voltage: 24V DC
Max output current: 4.5A
Tolerance: 21.6V - 28.8V
R&N: 150mV
Dimensions: 129x97x30 mm

Ceb
LRS-100-24
8023389570874
9 Items

Data sheet

Tensione
24v
W
100
A
4.5

No customer reviews for the moment.
