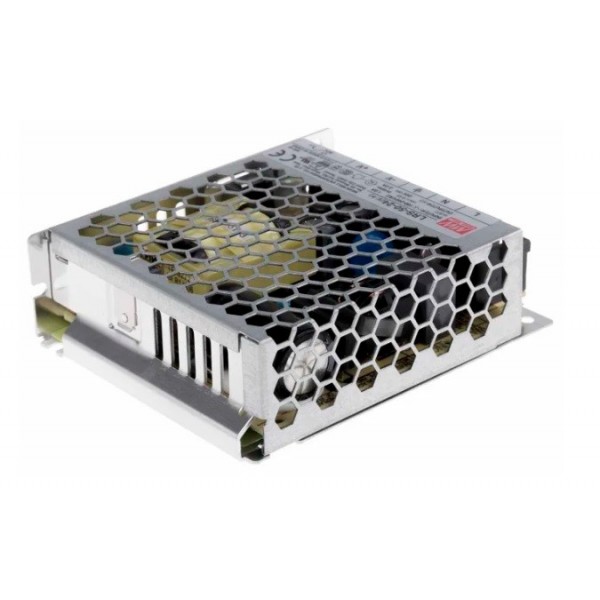

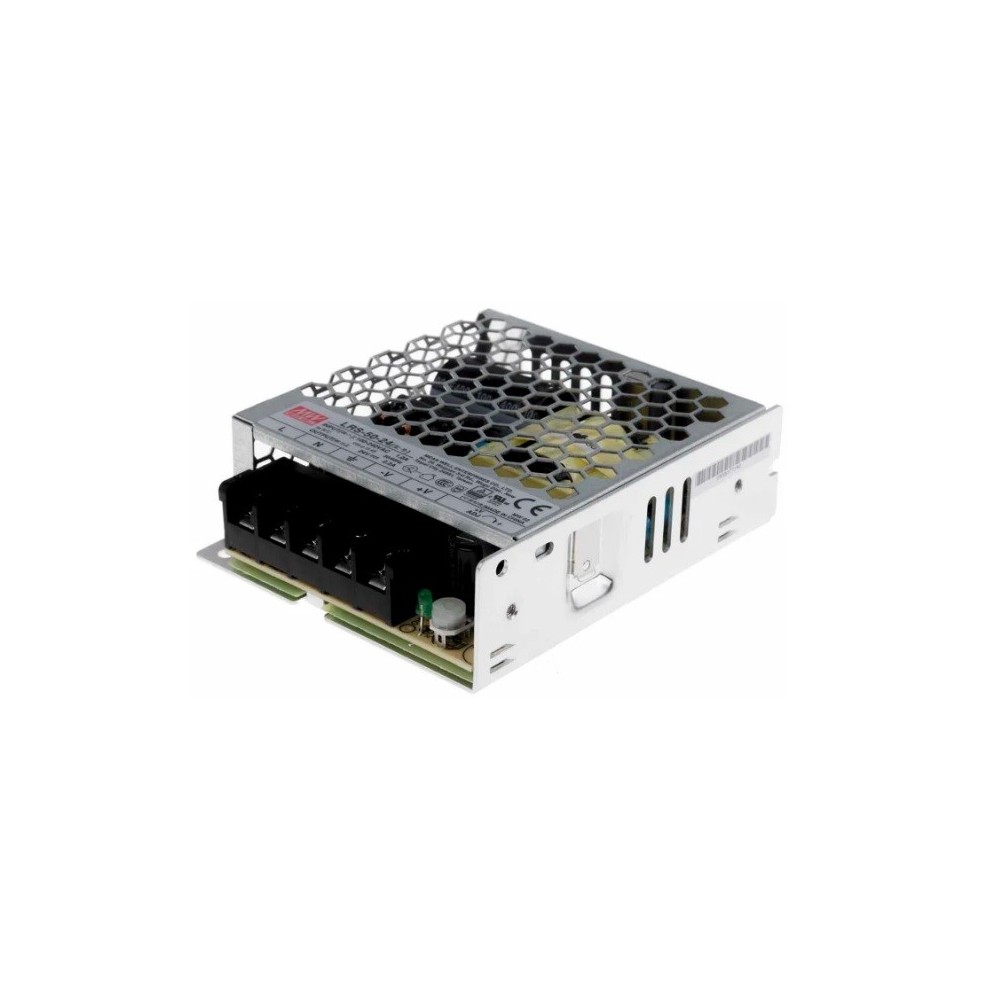

24V DC 2.2A professional power supply LRS-50-24
24V DC 2.2A professional power supply LRS-50-24
24V DC 2.2A professional power supply LRS-50-24
The MeanWell LRS-50 Series 52.8W Single Output Switching Power Supply has a rated output current of 2.2A at 24Vdc. It is equipped with a universal input power voltage ranging from 85VAC to 264VAC / 120Vdc to 373Vdc. The device provides a metal mesh and air convection to ensure excellent heat dissipation. This power supply can offer extremely low power consumption under no load. The power supply meets anti-vibration requirements up to 5G and makes it ideal for installation in test environments.
General features:
- Withstands 300VAC voltage spikes for 5 seconds
- High operating temperature, up to 70 °C
- Passes the 5G vibration test
- Operates up to a height of 5,000 m
- High efficiency, long life and reliability
- Miniature size, high power density
- Free air convection cooling
- Short Circuit / Overload / Over voltage protection
- Safety standard: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1 / -2-16, CCCGB4943
Details:
Power: 52.8W
Output voltage: 24V DC
Max output current: 2.2A
Tolerance: 21.6V - 28.8V
R&N: 150mV

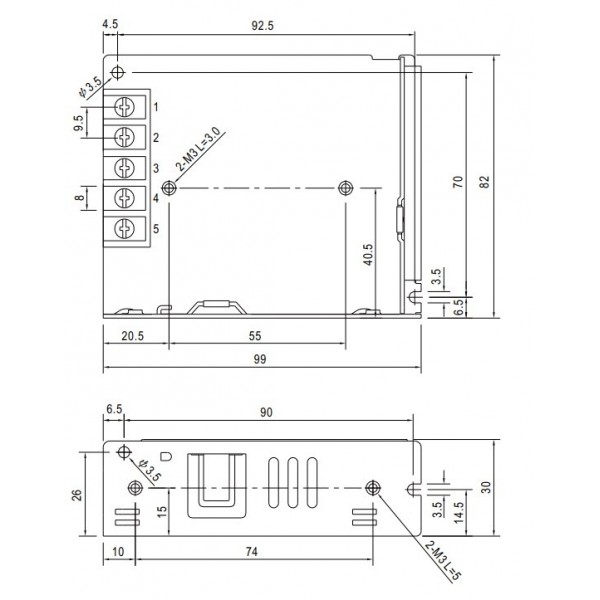

Dimensions : 99x82x30 mm
